Dormer B9527.0 5986974 Hand Taper Pin Reamer 6FL 7.00 mm
MODEL 5986974
$112.81 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

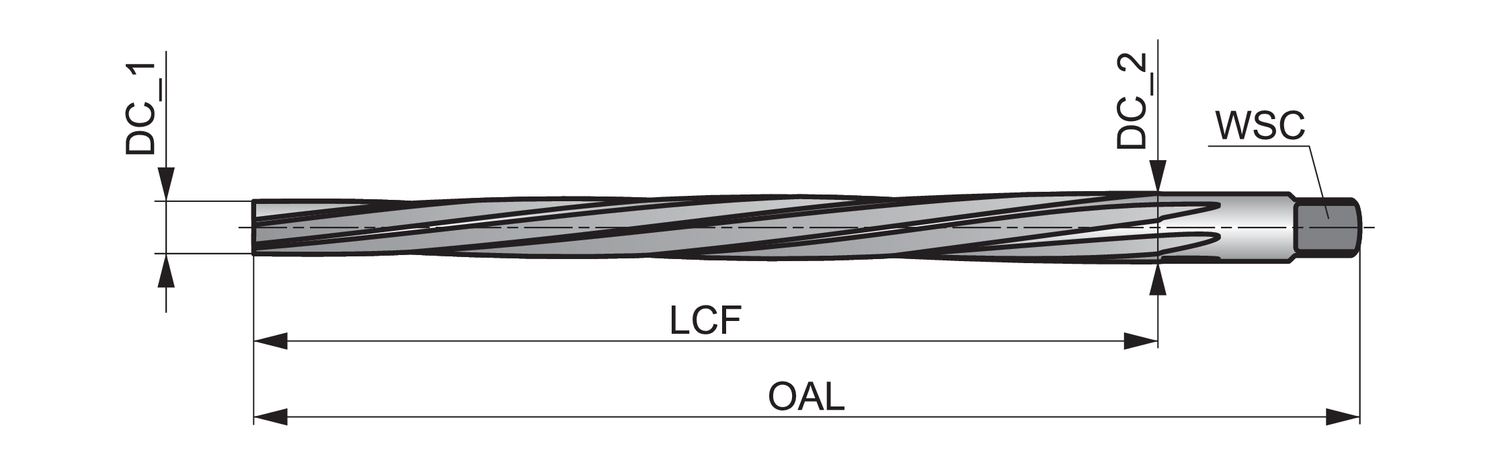

Basic Standard
DIN 9
Clamping width - inch
0.2756
Clamping width - millimeter (WSC)
7
Coating
Bright
Connection diameter - inch (DCON MS)
0.3543
Connection diameter - millimeter (DCON MS)
9
Connection diameter tolerance machine side (TCDCONMS)
h11
Cutting diameter step - millimeter
6.9
EDP number
140987
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
125
Material
HSS
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986974
Nominal diameter
7.0
Ordering code ANSI
B9527.0
Overall length - inch (OAL)
6.2992
Overall length - millimeter (OAL)
160
Shank
Cylindrical shank with Square
Surface treatement
Original surface
Taper gradient - millimeter (Rate of taper)
0.02
Taper pin hand reamer with left hand slow spiral flutes and a square drive, small end diameter 6.90mm with an overall length of 160mm, a flute length of 125mm and 9.40mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 7.00mm taper pins will fit, HSS with bright finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
