Dormer G14925 5973203 Countersink - 90° 1FL 25.00 mm
MODEL 5973203
$169.13 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Countersinking 90°
Basic Standard
DORMER
Coating
Bright

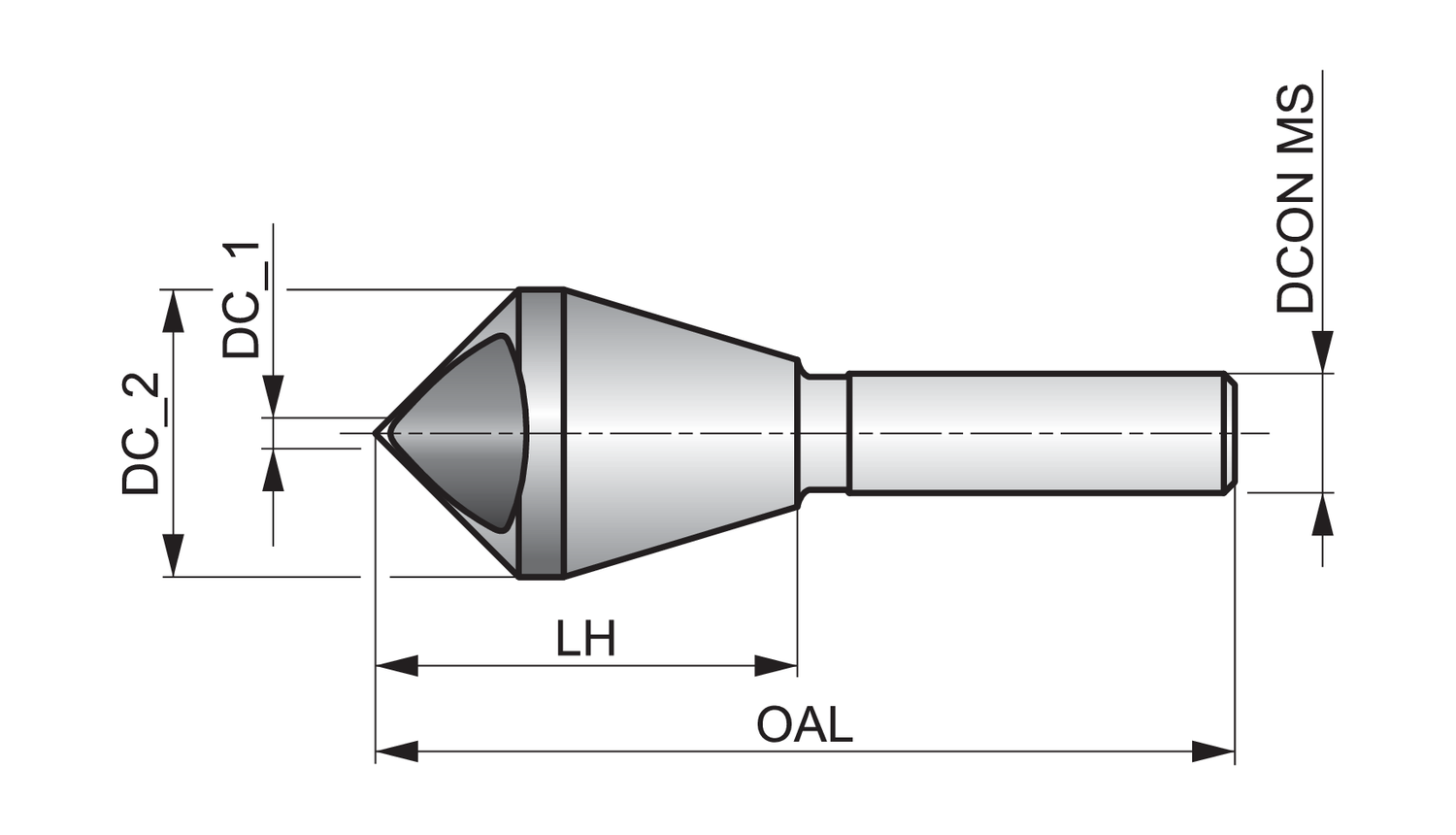

Connection diameter - inch (DCON MS)
0.5906
Connection diameter - millimeter (DCON MS)
15
Cutting diameter - inch (DC)
1.378
Cutting diameter - millimeter (DC)
35
Cutting diameter step - millimeter
20
EDP number
109069
Flute count (NOF)
1
Hand (Cutting direction)
Right
Head length - millimeter (LH)
48
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973203
Ordering code ANSI
G14925
Overall length - inch (OAL)
4.0157
Overall length - millimeter (OAL)
102
Point Angle (SIG)
90
Shank
Cylindrical shank
Zero flute countersink, through hole style, with 1-cutting edge, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 102mm and a head length of 48mm and 15mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 20.00mm, cobalt based HSS-E with standard bright finish for machining free machining, plain carbon and alloy steel, wrought and copper or copper alloys.
