Image for Illustration purposes only. Actual product may vary
Dormer C40720.0 5985120 Roughing End Mill 20.00 mm
MODEL 5985120
$118.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

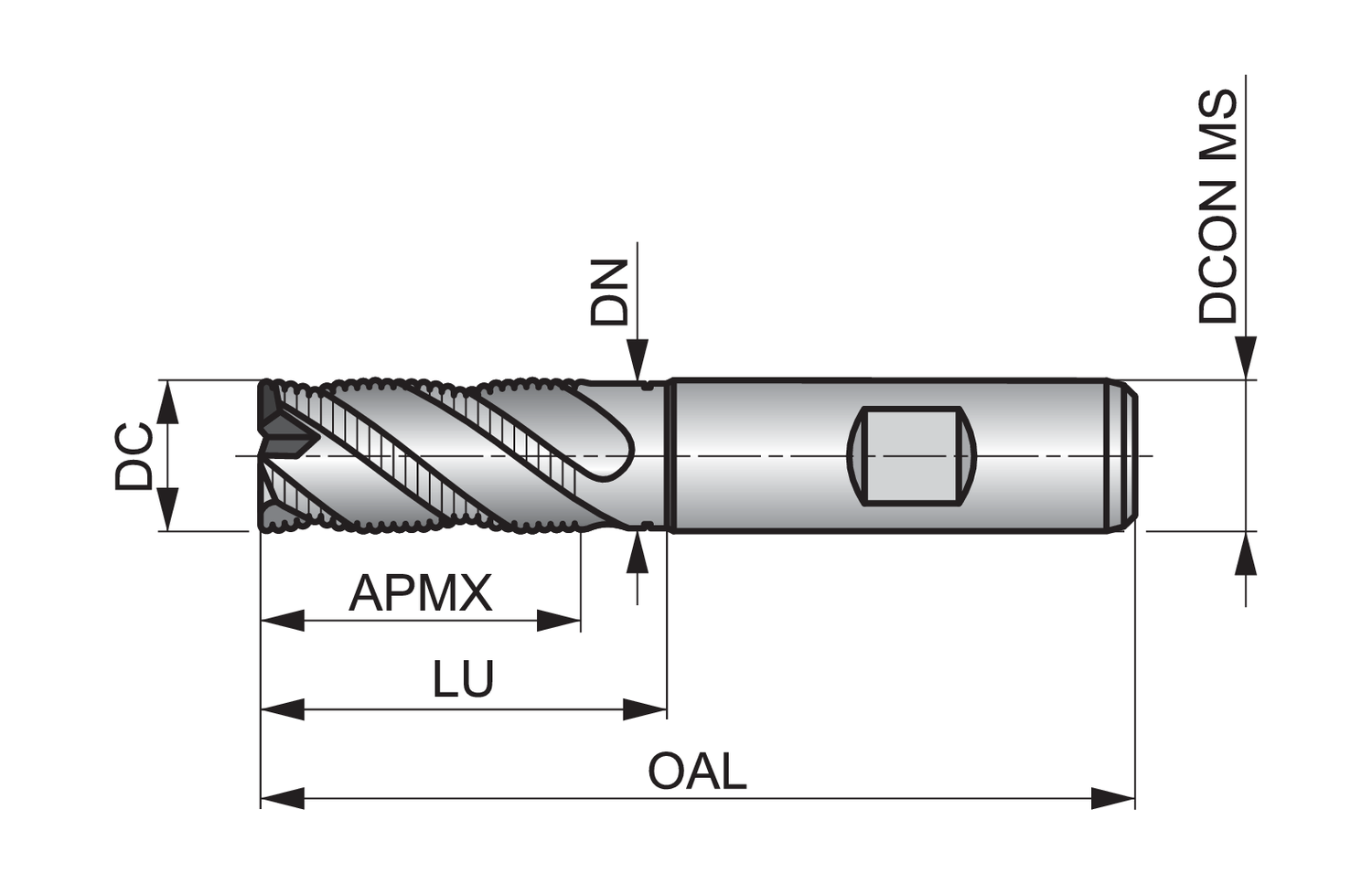

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
k12
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
68861
Flute count (NOF)
4
Flute helix angle (FHA)
35
Material
HSS-E-PM
MID number
5985120
Mill Profile
NRA - Coarse Pitch Asymmetrical Rounded Profile Chipbreaker
Neck diameter - inch (DN)
0.7677
Neck diameter - millimeter (DN)
19.5
Ordering code ANSI
C40720.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
53.5
With a medium length flute with NRA profile to break chips for efficient roughing applications, the C407 4-flute milling cutter can be used for roughing when plunging, ramping and profile milling in steels, stainless steels and cast iron.
Manufactured from powder metal High Speed cobalt for longer tool life and better performance, the C407 milling cutter has a bright finish which stops workpiece material from sticking to the cutting edge of the tool, ensuring a clean and accurate result, whilst the 35 degree helix reduces vibration and improves performance when used in CNC machines
