Dormer S22610.0 6706784 Finishing End Mill 10.00 mm
MODEL 6706784
$123.39 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlTiN
Coating property (CTP)
1

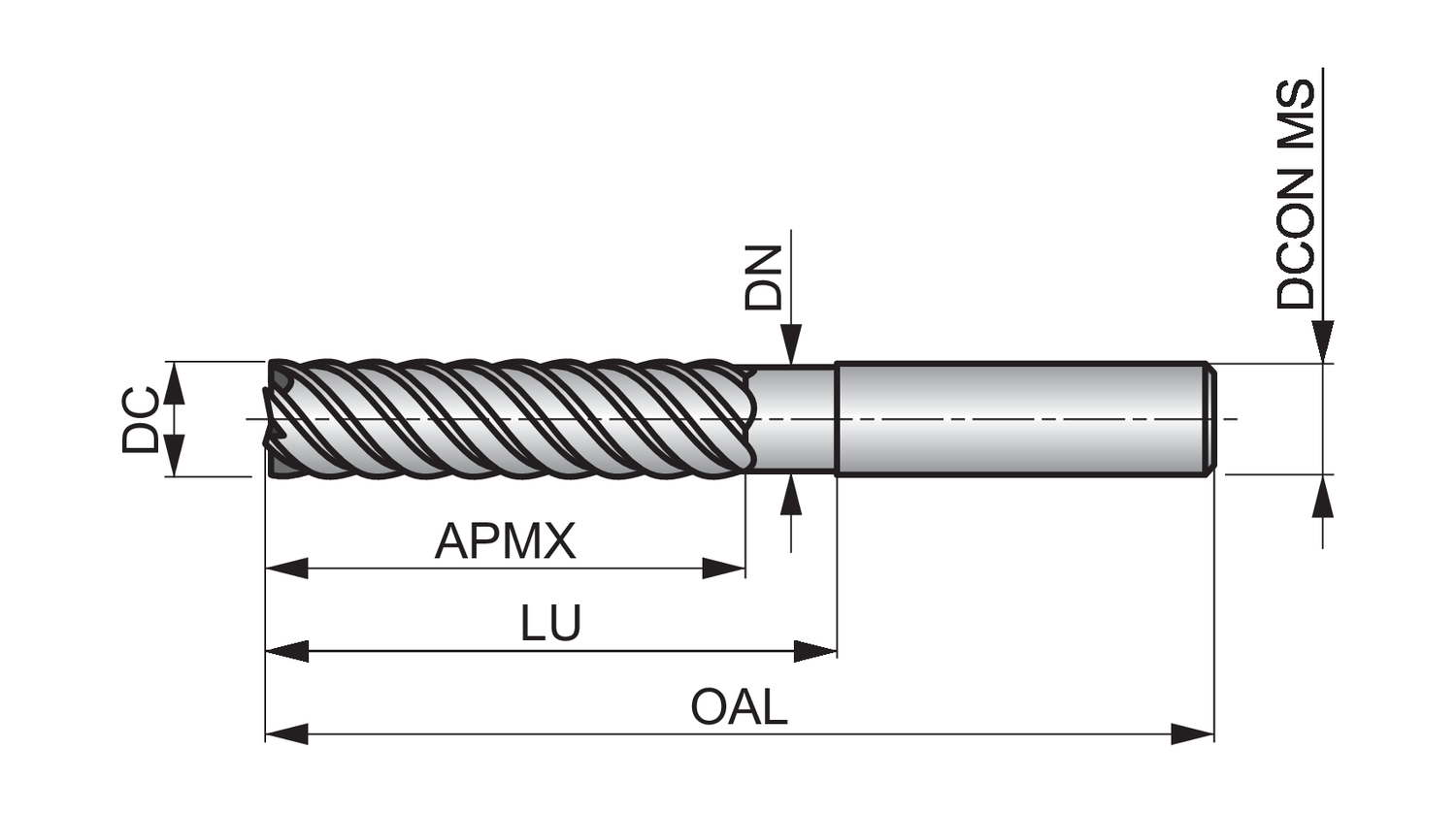

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Cut length
Long
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
1.7717
Depth of cut maximum - millimeter (APMX)
45
EDP number
46706784
Flute count (NOF)
6
Flute helix angle (FHA)
50
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706784
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.3622
Neck diameter - millimeter (DN)
9.2
Ordering code ANSI
S22610.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
60
S226 milling cutters are part of Dormer extensive cutter range and are manufactured from premium carbide for superior performance and extended tool life.
They are designed specifically for finishing in difficult to machine materials such as heat resistant alloys and, to improve performance under these conditions, are coated with an aluminium titanium nitride coating, which also further extends the tool life.
The long series multi-flute design of S226 cutters provides high rigidity for finishing of deep profiles, and the 50 degree helix ensures high performance profiling on CNC machines
