Dormer S52116.0XR1.0 6706683 Corner Radius End Mill 16.00 mm x 1.0 mm
MODEL 6706683
$331.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

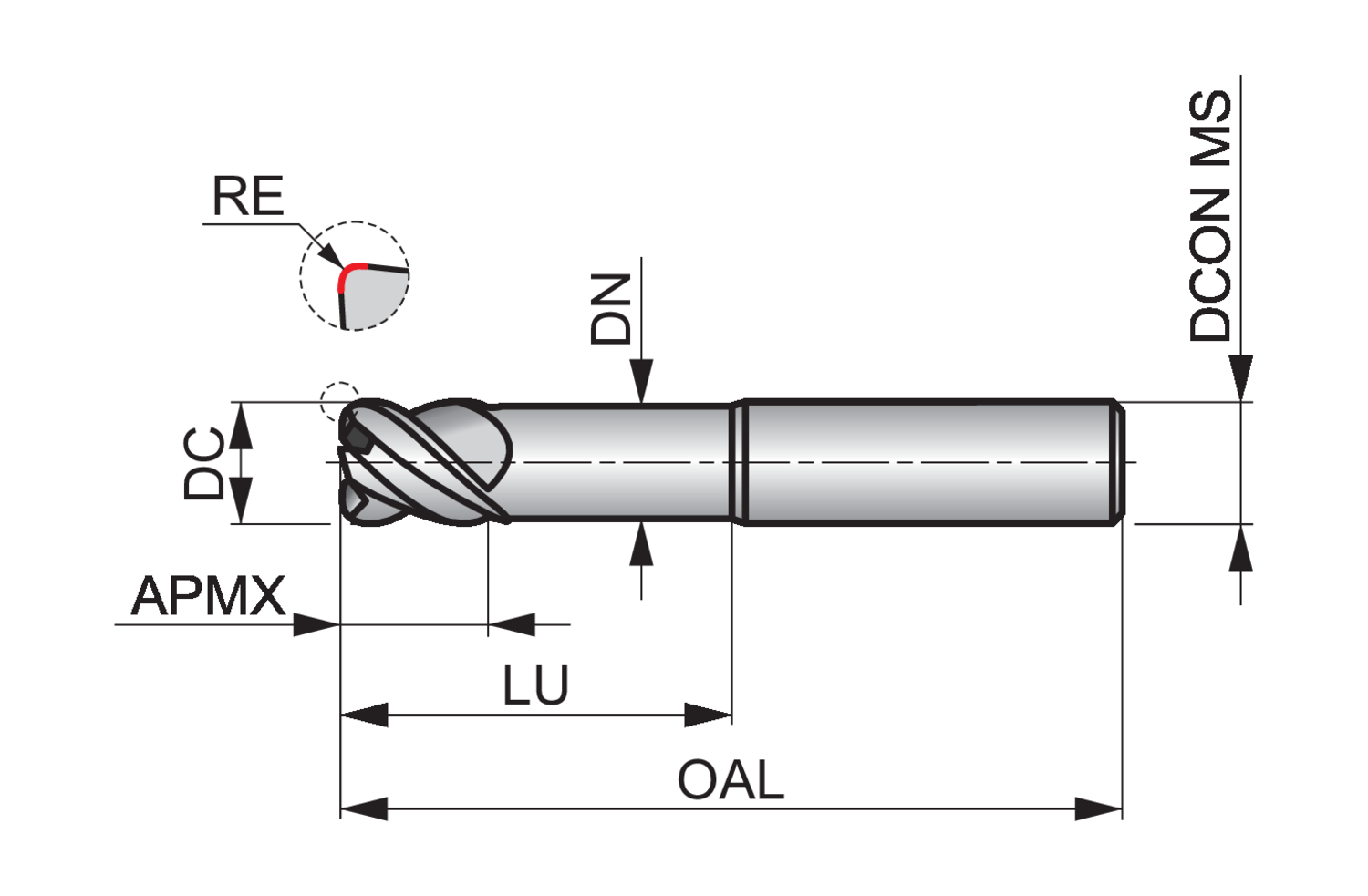

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Corner radius - inch (RE)
0.0394
Corner radius - millimeter (RE)
1
Cut length
Extra short
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6693
Depth of cut maximum - millimeter (APMX)
17
EDP number
46706683
Flute count (NOF)
4
Flute helix angle (FHA)
45
Material
HM
Material application
H - Hardened materials
MID number
6706683
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.5906
Neck diameter - millimeter (DN)
15
Ordering code ANSI
S52116.0XR1.0
Overall length - inch (OAL)
3.5433
Overall length - millimeter (OAL)
90
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
-10
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
43
S521 4-flute milling cutters have a 45 degree helix for high performance profiling on CNC machines and a short flute design with corner radius, great for standard profile milling where a fillet radius is required.
They have a titanium silicon nitride coating for increased tool life and improved performance when milling difficult to machine materials.
Manufactured from premium carbide for great performance and longer tool life, S521 corner radius milling cutters are designed specifically for high speed machining in hardened tool steels up to 63HRC
