Dormer J26015.9-14 6821347 NPT Thread Mill Spiral Flute 10° 1/2 inch . 3/4 inch x 14
MODEL 6821347
$555.24 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

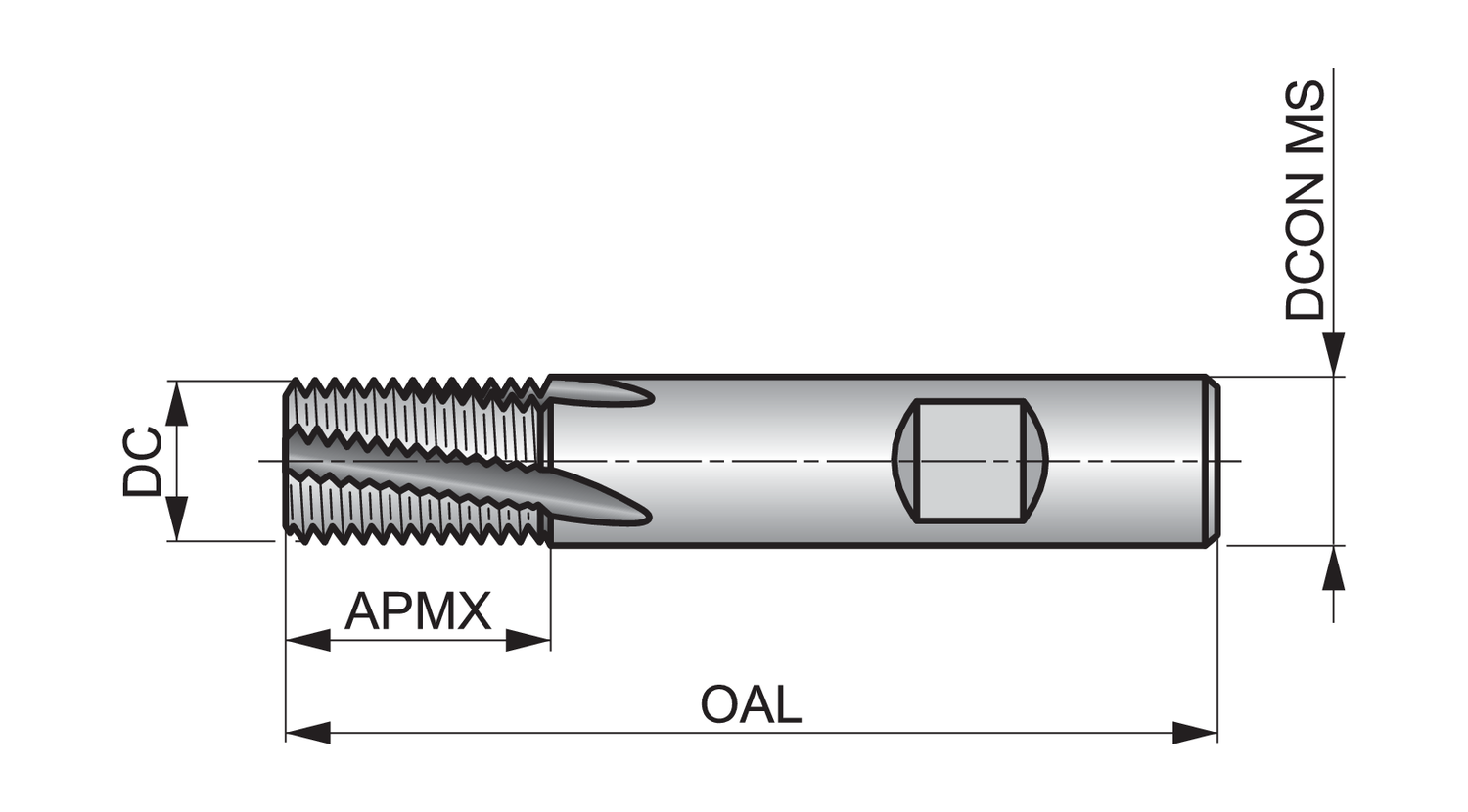

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Cutting diameter - inch (DC)
0.626
Cutting diameter - millimeter (DC)
15.9
Depth of cut maximum - inch (APMX)
0.8055
Depth of cut maximum - millimeter (APMX)
20.46
EDP number
46821347
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821347
Ordering code ANSI
J26015.9-14
Overall length - inch (OAL)
3.2283
Overall length - millimeter (OAL)
82
Shank
Cylindrical shank DIN 6535 HB
Thread diameter size (TDZ)
1/2, 3/4
Thread form (THFT)
NPT - National taper pipe
Threads per inch (TPI)
14
Thread milling cutter, for National Pipe Taper thread ≥ NPT 1/2" with 14 TPI, dimensions according to DORMER standard with 4 flutes, 15.9mm cutting diameter and 16mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 20.46mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
