Dormer R96043/64 5988601 140° Hydra Drill Head for Stainless Steel 43/64 inch
MODEL 5988601
$130.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplication Material
M - Stainless steel
ApplicationAngleIcon_DICT_SEL
Drill point 140°
Basic Standard
DORMER
Coating
Ti-phon
Coolant Through
1
Cooling (CSP)
1
Cutting diameter - Fractional Inch
43/64

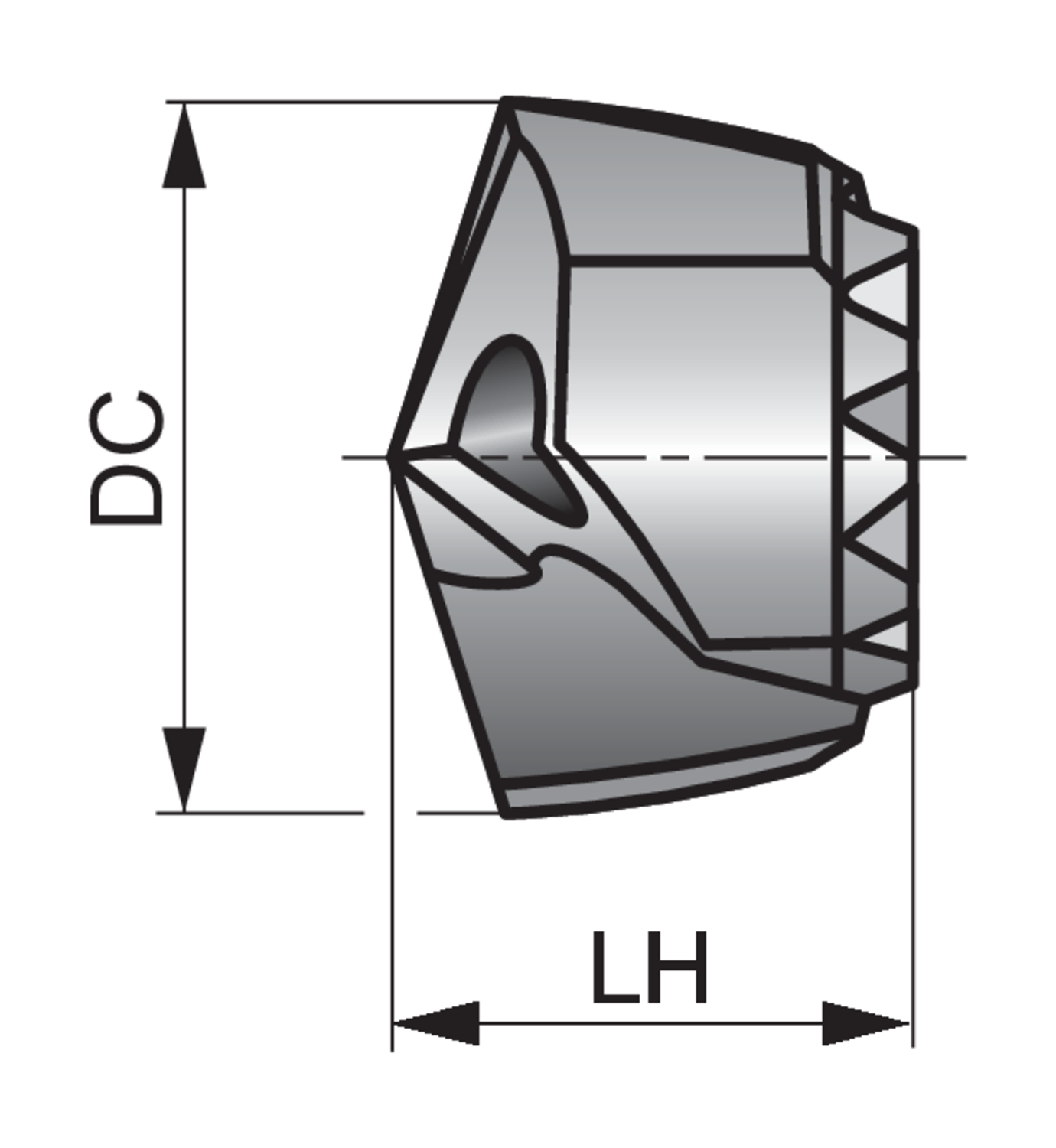

Cutting diameter - inch (DC)
0.6719
Cutting diameter - millimeter (DC)
17.07
Cutting diameter tolerance class (TCDC)
h7
Cutting Direction
Right
EDP number
16183
Head length - millimeter (LH)
12.2
Material
Carbide
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel
MID number
5988601
Ordering code ANSI
R96043/64
Point Angle
140
Another member of Dormer’s Hydra drilling range, R960 drill heads are manufactured from premium carbide for high performance drilling and longer tool life.
The interchangeable heads with coolant feed mean you can replace just the Hydra drill head for great cost savings.
With a geometry designed specifically for drilling stainless steels, R960 Hydra drill heads come with a 140 degree split point to help with self-centering and reduce the push force needed, and a special Tiphon coating to extend the tool life and give improved performance when drilling harder materials.
Please see H853, H855 and H858 Hydra bodies for use with these drill heads
