L1031/64 010931 118° Jobber Drill 31/64 inch
MODEL L1031/64
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$37.85 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright
Connection (shank) description
Cylindrical shank

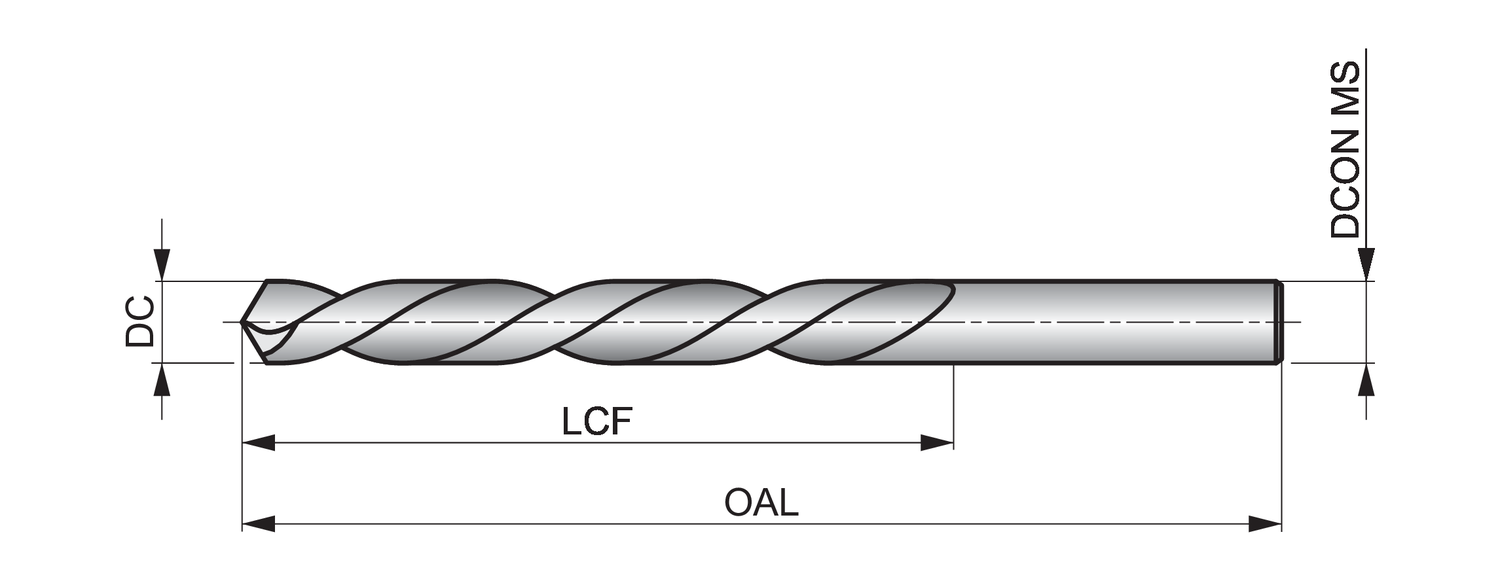

Cutting diameter - fractional inch (DC)
31/64
Cutting diameter - inch (DC)
0.4844
Cutting diameter - millimeter (DC)
12.3
Drill Length
Jobber
Hand (Cutting direction)
Left
Length chip flute - fractional inch (LCF)
4.3/8
Length chip flute - inch (LCF)
4.375
Material
HSS
Overall length - fractional inch (OAL)
5.7/8
Overall length - millimeter (OAL)
149.23
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Original surface
Usable length (ULDR)
4
L10 left-hand jobber drill bits have a strong, conventional 118 degree point which is easy to regrind, so the drill can be used again and again.
With a bright finish to prevent workpiece material from sticking to the cutting edges of the tool so you get clean and accurate holes, L10 drill bits are manufactured from premium High Speed steel and can be used for drilling steels, aluminum, stainless steel and a wide range of other materials.
With a left hand spiral flute which can be used in spindles which rotate counter-clockwise, the drills are available in 31 sizes from 1/16” to 1/2" in 1/64” increments.
