Image for Illustration purposes only. Actual product may vary
R561 091464 118° 1/2 inch Reduced Parallel Shank Drill 1 inch
MODEL R561
$77.84 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
ApplicationAngleIcon_DICT_SEL
Drill point 118°
Basic Standard
ANSI
Coating
Bright/ST
Connection (shank) description
Reduced Cylindrical shank

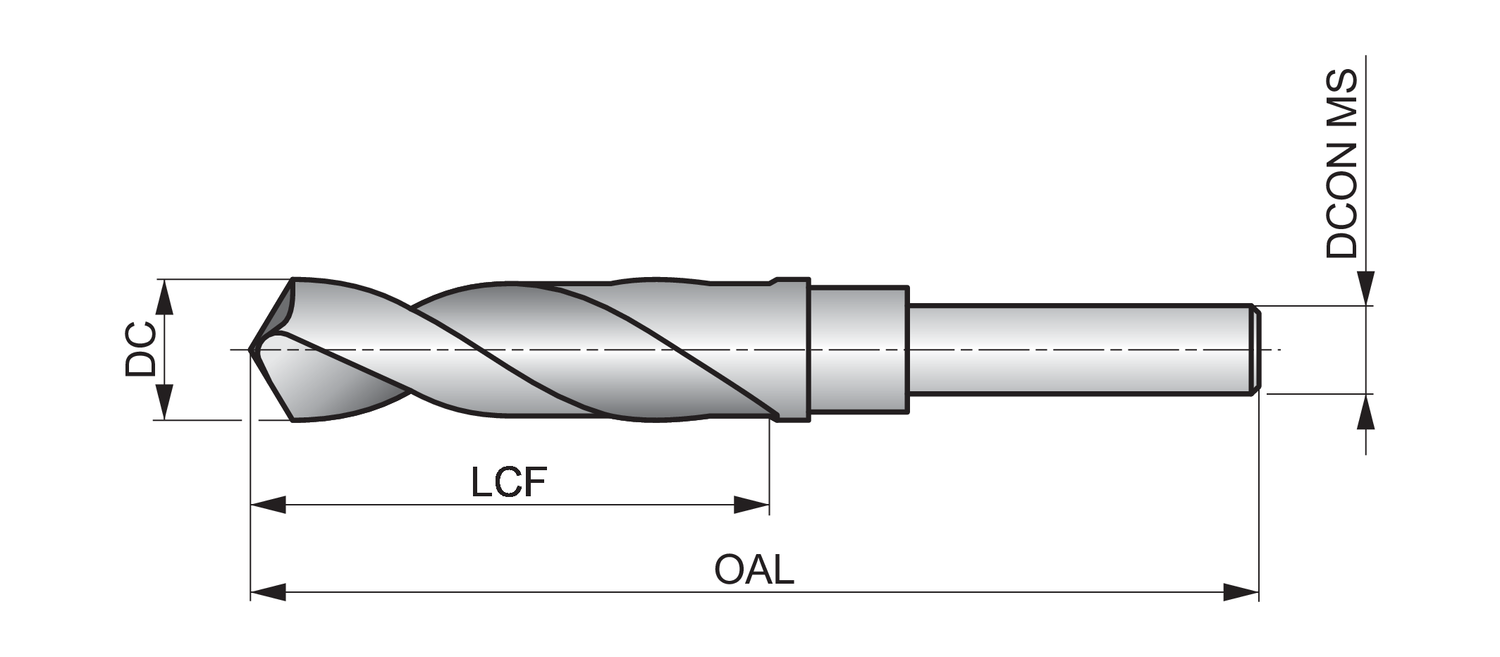

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Cutting diameter - fractional inch (DC)
1"""""
Cutting diameter - inch (DC)
1
Cutting diameter - millimeter (DC)
25.4
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
3"
Material
HSS
Overall length - fractional inch (OAL)
6
Overall length - millimeter (OAL)
152.4
Point Angle (SIG)
118
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
R56 silver and deming drills have a reduced 1/2 inch parallel shank which means you can hold large diameter drills in conventional, hand-held power tools.
Suitable for many different hand-held and machine applications, the drills are manufactured from High Speed steel and can be used for drilling many different materials including aluminum, stainless steel and steel.
The steam oxide finish ensures accurate results by preventing workpiece material from sticking to the cutting surfaces of the drill, whilst the conventional 118 degree point provides strength and means the tools can be easily re-ground for use again and again.
