MROSupply Has Hundreds Of Brands, Millions Of Products, Including
Image for Illustration purposes only. Actual product may vary
2ACO7.9 016479 Jobber Drill DIN 338 7.90 mm
MODEL 2ACO7.9
This product has a minimum order quantity of (12 minimum) This is the minimum order quantity available when purchasing this product.
$11.18 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(12 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
DIN 338
Coating
Bronze
Connection (shank) description
Cylindrical shank

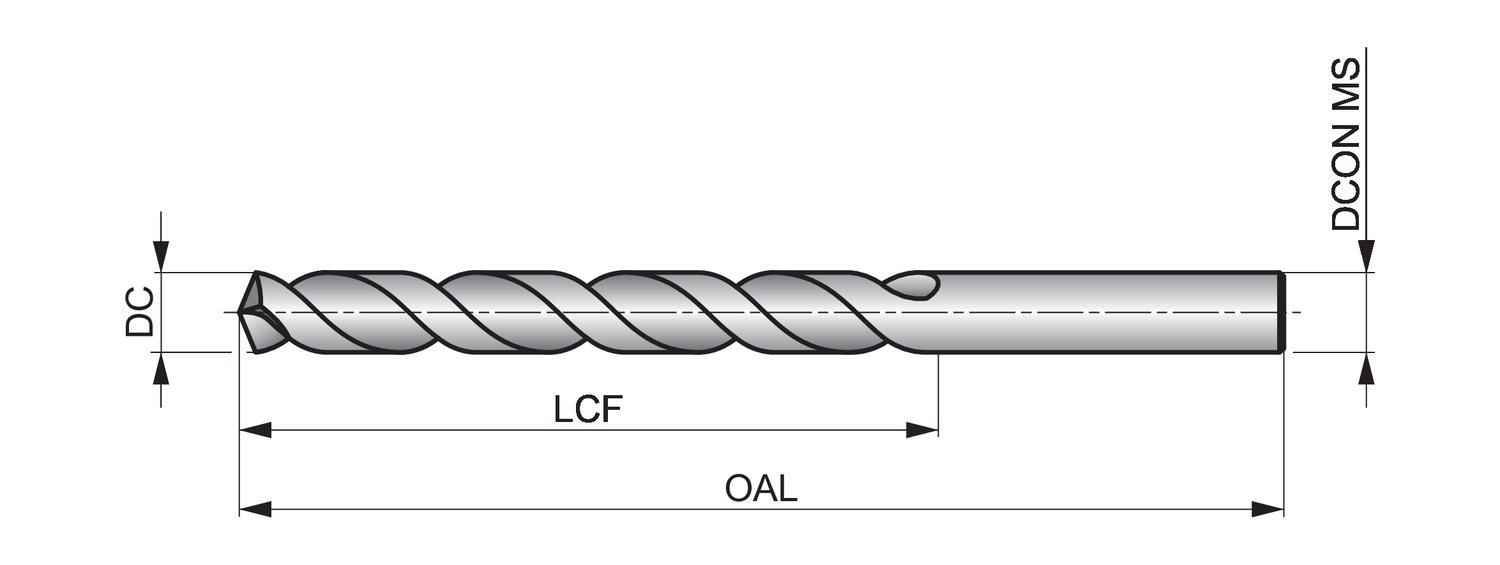

Connection diameter - millimeter (DCON MS)
7.9
Cutting diameter - inch (DC)
0.311
Cutting diameter - millimeter (DC)
7.9
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
75
Length chip flute - inch (LCF)
2.9528
Material
HSS-E
Overall length - millimeter (OAL)
117
Overall length - inch (OAL)
4.6063
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
4
2ACO heavy duty Jobber drill bits are manufactured to NAS 907, Type J standard, from premium High Speed cobalt and are suitable for drilling hard materials including tool steel and have a heavy duty design, recommended for use in difficult materials and applications.
The 135 degree split point is an aid to self-centering and reduces the push force needed, whilst the bronze oxide finish prevents workpiece material from sticking to the cutting edges of the tool so you get clean and accurate results.
2ACO Jobber drill bits are available in many sizes from 1 mm to 13 mm.
