Image for Illustration purposes only. Actual product may vary
R88CO7/16 058728 Bronze 135° Jobber Drill 7/16 inch
MODEL R88CO7/16
This product has a minimum order quantity of (6 minimum) This is the minimum order quantity available when purchasing this product.
$23.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $1
Select Quantity(6 minimum)
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Drill point 135°
Basic Standard
NAS907
Coating
Bronze
Connection (shank) description
Cylindrical shank

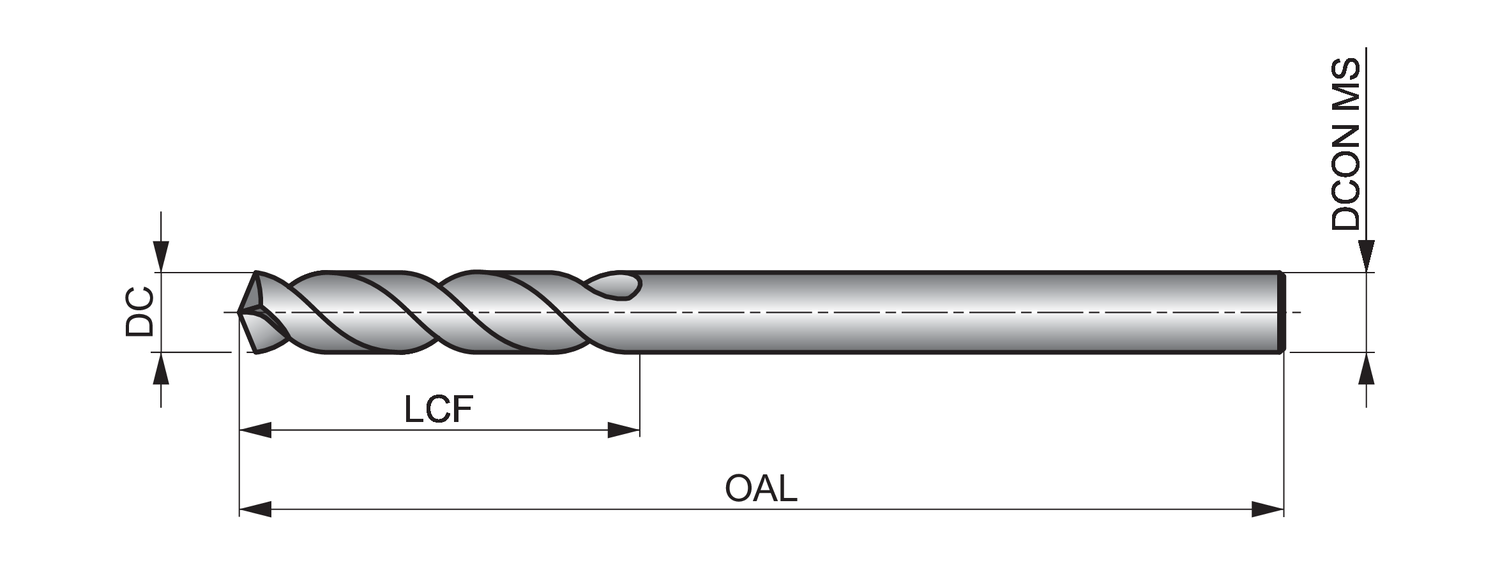

Cutting diameter - fractional inch (DC)
7/16
Cutting diameter - inch (DC)
0.4375
Cutting diameter - millimeter (DC)
11.11
Drill Length
Jobber
Hand (Cutting direction)
Right
Length chip flute - fractional inch (LCF)
2.1/16
Length chip flute - inch (LCF)
2.0625
Material
HSS-E
Overall length - fractional inch (OAL)
5.1/2
Overall length - millimeter (OAL)
139.7
Point Angle (SIG)
135
Spiral form
Standard Spiral
Surface treatement
Steam Tempered
Usable length (ULDR)
3
R88CO drills, manufactured to NAS907 type D standard, have a heavy duty design, recommended for use in difficult materials and applications, and are manufactured from premium High Speed cobalt, for drilling hard materials including tool steel. They are available in fractional sizes from 1/16 inch to 1/2 inch in 1/64 inch increments.
The 135 degree split point helps with self-centering and reduces the push force needed, whilst the bronze oxide finish prevents workpiece material from sticking to the cutting edges of the tool, for more accurate holes.
