SL-2ES-3SC

Image for Illustration purposes only. Actual product may vary

View in markdown

Red Lion Sixnet SL-2ES-3SC unmanaged industrial Ethernet switch with 2 ports and SC single-mode fiber connectivity. Operates in temperatures from -10°C to 60°C, making it suitable for industrial environments. This compact switch provides reliable network connectivity for automation applications.

MODEL SL-2ES-3SC

BRAND

Red Lion Controls

SKU

1357476

UOM

each

Contact supplier for technical support on: 717 767 6511 x2

Click for 5% off

$454.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: See conditions

Operating Temperature

-10C to 60C

Specifications:

  • Unmanaged Plug and Play Operation
  • 2 Port Lite-Industrial Media Converter
    • One 10/100BaseTX RJ-45 Port
    • One 100BaseFX Singlemode 20km Fiber Port with SC Connectors
  • Compact, Space Saving Package
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -10° to 60°C Operating Temperature
    • >1M+ Hours MTBF
  • Supports Full/Half Duplex Operation
  • MDIX Auto Sensing Cable
  • Auto Sensing Speed and Flow Control
  • Surge Protection on Power Inputs
  • Redundant Power Inputs (10-30 VDC)
  • LED Link/Activity Status Indication
  • Lexan DIN-Rail Enclosure

SL-2ES Data Sheet_SL-2ES Data Sheet

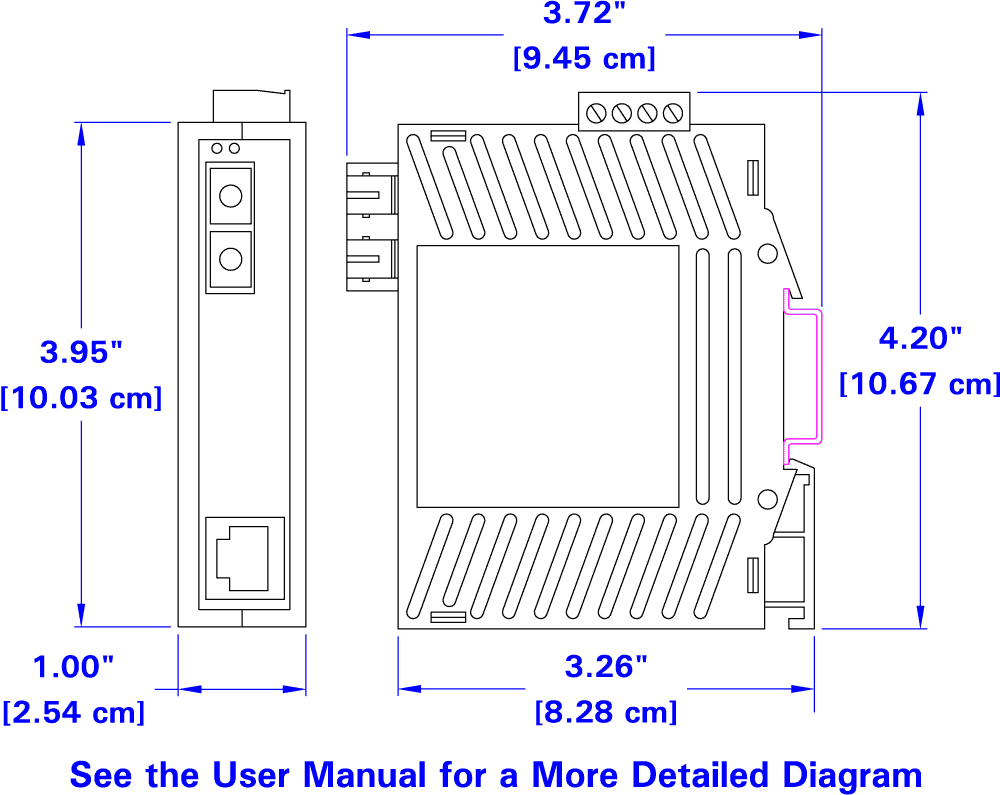

SL-2ES-23 Dimension Drawing_Drawing SL-2ES-23 Dimension Drawing

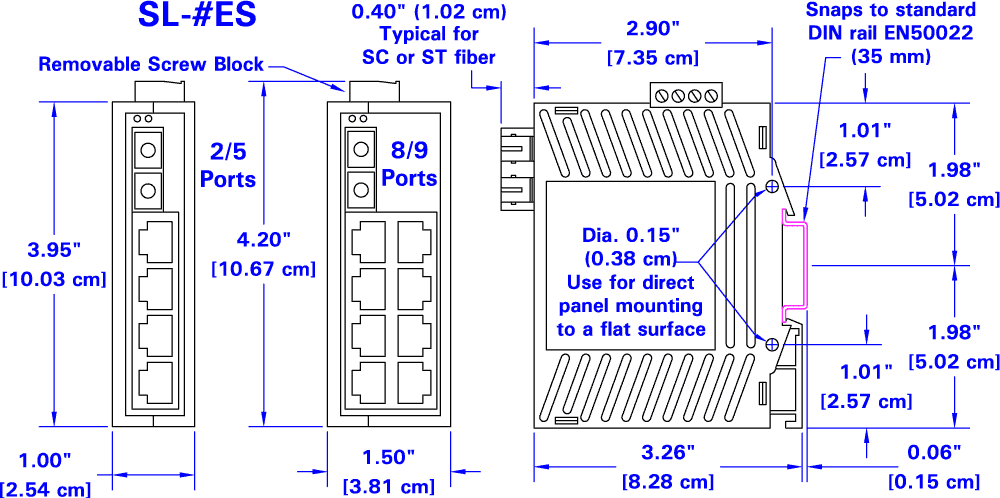

SL-ES Dimension Drawing_Drawing SL-ES Dimension Drawing
SL-SLX Product Manual - JAPANESE_SL-SLX Product Manual - JAPANESE
SL-SLX Quick Start Guide - JAPANESE_SL-SLX Quick Start Guide - JAPANESE
SL-SLX Series Quick Start Guide_SL-SLX Series Quick Start Guide
SL/SLX Product Manual_SLSLX Product Manual

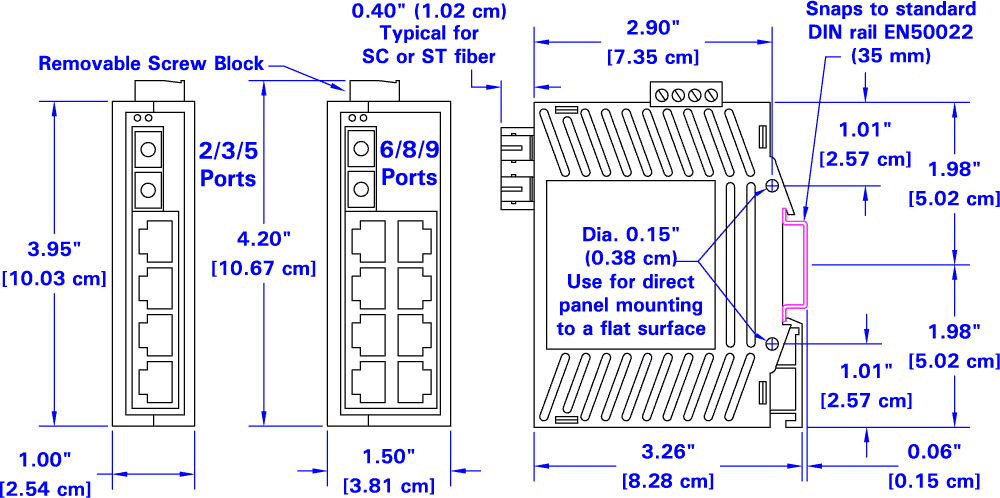

SL235689 ES12345 Dimension Drawing_Drawing SL235689 ES12345 Dimension Drawing
SL-ES CAD Drawing - dwg_SL-ES CAD Drawing - dwg.dwg
SL-ES CAD Drawing - dxf_SL-ES CAD Drawing - dxf.dxf
SL235689-ES12345 CAD Drawing_SL235689-ES12345 CAD Drawing.dxf
