SLX-3ES-3SC

Image for Illustration purposes only. Actual product may vary

View in markdown

Red Lion Sixnet SLX-3ES-3SC is a 3-port unmanaged industrial Ethernet switch with SC fiber connectors. It operates in temperatures from -40C to 85C, making it suitable for harsh environments. This switch provides reliable network connectivity for industrial automation applications.

MODEL SLX-3ES-3SC

BRAND

Red Lion Controls

SKU

1357501

UOM

each

Contact supplier for technical support on: 717 767 6511 x2

Click for 5% off

$527.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: See conditions

Operating Temperature

-40C to 85C

Specifications:

  • Unmanaged Plug and Play Operation
  • 3 Port Industrial Ethernet Switch
    • Two 10/100BaseTX RJ-45 Ports
    • One 100BaseFX Singlemode 20km Fiber Port with SC Connectors
  • Compact, Space Saving Package
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40° to 85°C Operating Temperature
    • >1M+ Hours MTBF
  • Supports Full/Half Duplex Operation
  • MDIX Auto Sensing Cable
  • Auto Sensing Speed and Flow Control
  • Surge Protection on Power Inputs
  • Redundant Power Inputs (10-30 VDC)
  • LED Link/Activity Status Indication
  • Hardened Metal DIN-Rail Enclosure


SL-SLX Product Manual - JAPANESE_SL-SLX Product Manual - JAPANESE
SL-SLX Quick Start Guide - JAPANESE_SL-SLX Quick Start Guide - JAPANESE
SL-SLX Series Quick Start Guide_SL-SLX Series Quick Start Guide
SL/SLX Product Manual_SLSLX Product Manual

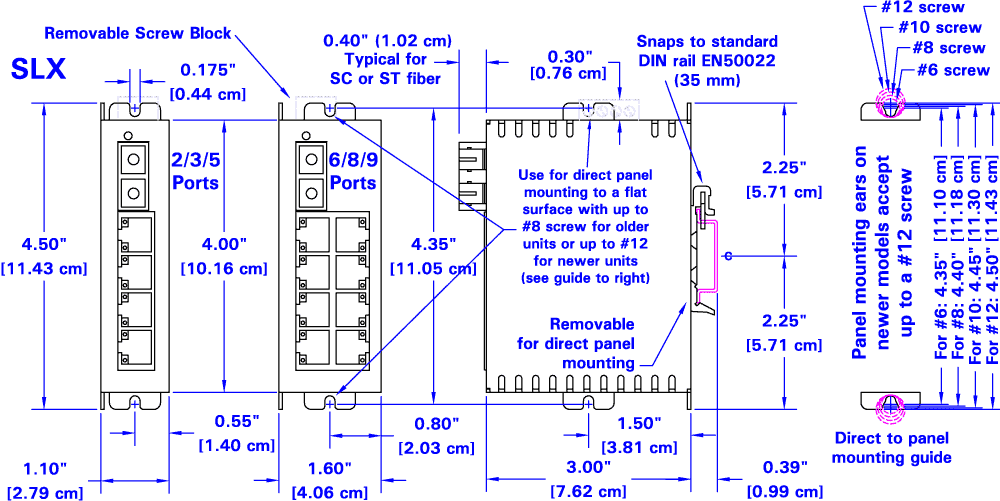

SLX-235689ES-12345 MDR Dimension Drawing_Drawing SLX-235689ES-12345 MDR Dimension Drawing
SLX-3ES Data Sheet_SLX-3ES Data Sheet
SLX-235689ES-12345 MDR CAD Drawing_SLX-235689ES-12345 MDR CAD Drawing.dxf
