SLX-8ES-6ST

Image for Illustration purposes only. Actual product may vary

View in markdown

Red Lion Sixnet SLX-8ES-6ST 8-port unmanaged industrial Ethernet switch with 6 ST fiber ports supporting 4km multimode reach. Operates from -40C to 85C, making it suitable for harsh industrial environments. Provides reliable network connectivity for automation and control applications.

MODEL SLX-8ES-6ST

BRAND

Red Lion Controls

SKU

1357596

UOM

each

Contact supplier for technical support on: 717 767 6511 x2

Click for 5% off

$795.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: See conditions

Operating Temperature

-40C to 85C

Specifications:

  • Unmanaged Plug and Play Operation
  • 8 Port Industrial Ethernet Switch
    • Five 10/100BaseTX RJ-45 Ports
    • Three 100BaseFX Multimode 4km Fiber Ports with ST Connectors
  • Compact, Space Saving Package
  • IEEE 802.3 Compliance
  • Extended Environmental Specifications
    • -40° to 85°C Operating Temperature
    • >1M+ Hours MTBF
  • Supports Full/Half Duplex Operation
  • MDIX Auto Sensing Cable
  • Auto Sensing Speed and Flow Control
  • Surge Protection on Power Inputs
  • Redundant Power Inputs (10-30 VDC)
  • LED Link/Activity Status Indication
  • Hardened Metal DIN-Rail Enclosure

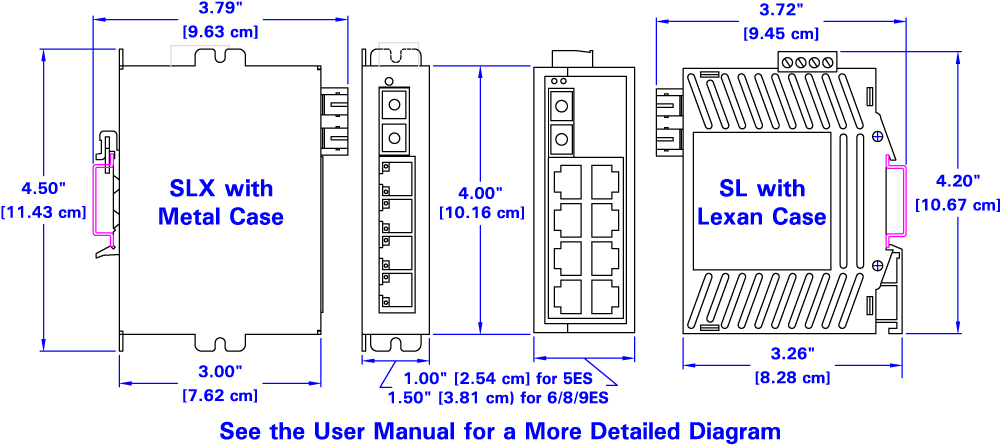

SL-SLX 5689ES Dimension Drawing_Drawing SL-SLX 5689ES Dimension Drawing
SL-SLX Product Manual - JAPANESE_SL-SLX Product Manual - JAPANESE
SL-SLX Quick Start Guide - JAPANESE_SL-SLX Quick Start Guide - JAPANESE
SL-SLX Series Quick Start Guide_SL-SLX Series Quick Start Guide
SL-SLX-589ES-123 Data Sheet_SL-SLX-589ES-123 Data Sheet
SL/SLX Product Manual_SLSLX Product Manual

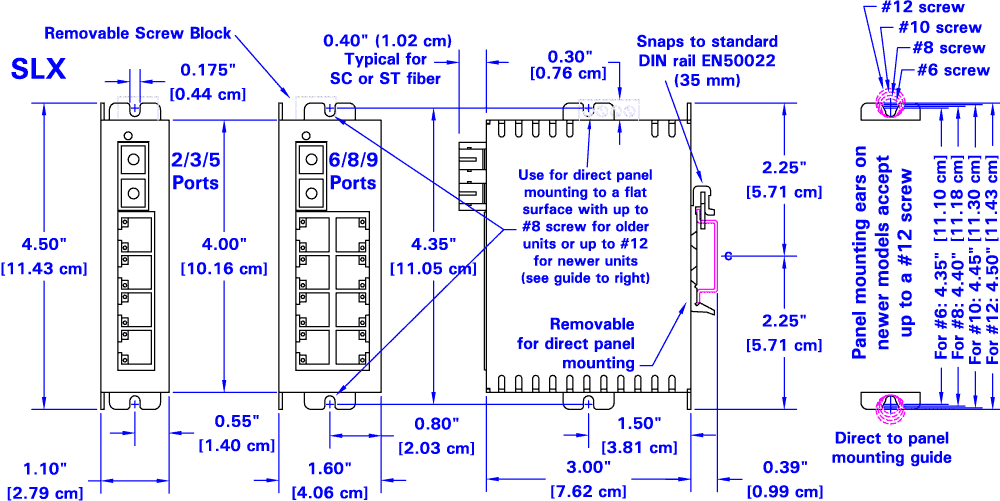

SLX-235689ES-12345 MDR Dimension Drawing_Drawing SLX-235689ES-12345 MDR Dimension Drawing
SLX-8ES Data Sheet_SLX-8ES Data Sheet

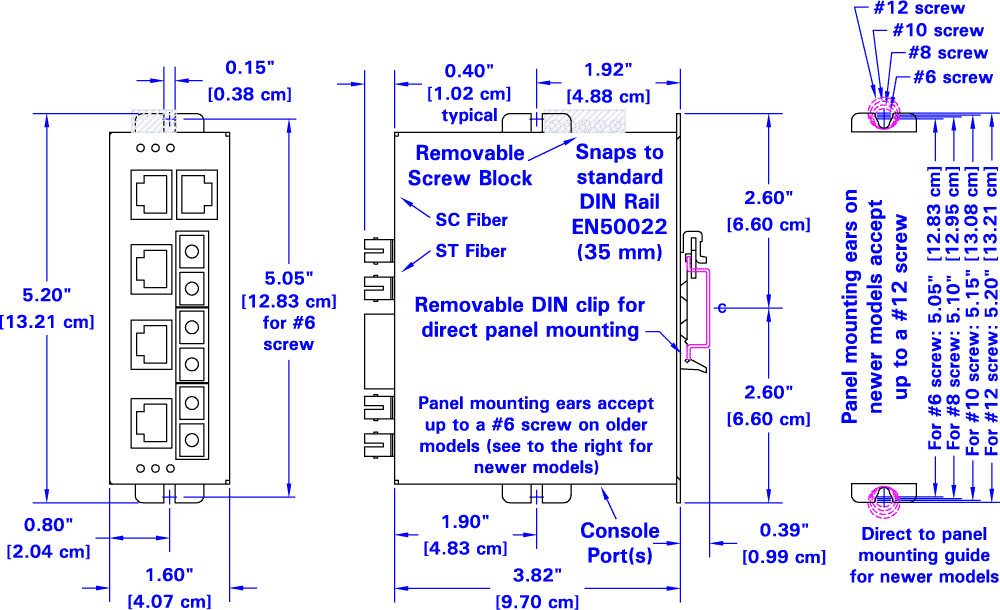

SLX-8ES-67 Dimension Drawing_Drawing SLX-8ES-67 Dimension Drawing
SLX-235689ES-12345 MDR CAD Drawing_SLX-235689ES-12345 MDR CAD Drawing.dxf
SLX-8ES-67 CAD Drawing_SLX-8ES-67 CAD Drawing.dxf
