Red Lion Sixnet SLX-6RS-4SC-D1 unmanaged industrial Ethernet switch with 6 ports, including 2 multimode SC fiber ports supporting 4 km reach. Operates from -40C to 85C for harsh environments. LX6 series switch provides reliable network connectivity for industrial automation applications.

Name: Red Lion Sixnet SLX-6RS-4SC-D1 unmanaged industrial Ethernet switch with 6 ports, including 2 multimode SC fiber ports supporting 4 km reach. Operates
Brand: Red Lion Controls
Price: 878.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

MODEL SLX-6RS-4SC-D1

BRAND

Red Lion Controls

SKU

1357627

UOM

each

Contact supplier for technical support on: 717 767 6511 x2

Click for 5% off

$878.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: See conditions

Operating Temperature

-40C to 85C

Specifications:

Real-Time Ring Protocol with Zero-Configuration
Real-Time Modbus over Ethernet monitoring
6 Port Industrial Ethernet Switch
- Four 10/100BaseTX RJ-45 Ports
- Two 100BaseFX Multimode 4km Fiber Ports with SC Connectors
Compact, Space Saving Package
IEEE 802.3 Compliance
Extended Environmental Specifications
- -40° to 85°C Operating Temperature
- >1M+ Hours MTBF
Supports Full/Half Duplex Operation
MDIX Auto Sensing Cable
Auto Sensing Speed and Flow Control
Surge Protection on Power Inputs
Redundant Power Inputs (10-30 VDC)
LED Link/Activity Status Indication
Hardened Metal DIN-Rail Enclosure

SL-SLX Product Manual - JAPANESE_SL-SLX Product Manual - JAPANESE

SL-SLX Quick Start Guide - JAPANESE_SL-SLX Quick Start Guide - JAPANESE

SL-SLX Series Quick Start Guide_SL-SLX Series Quick Start Guide

SL-SLX-6RS-145 Data Sheet_SL-SLX-6RS-145 Data Sheet

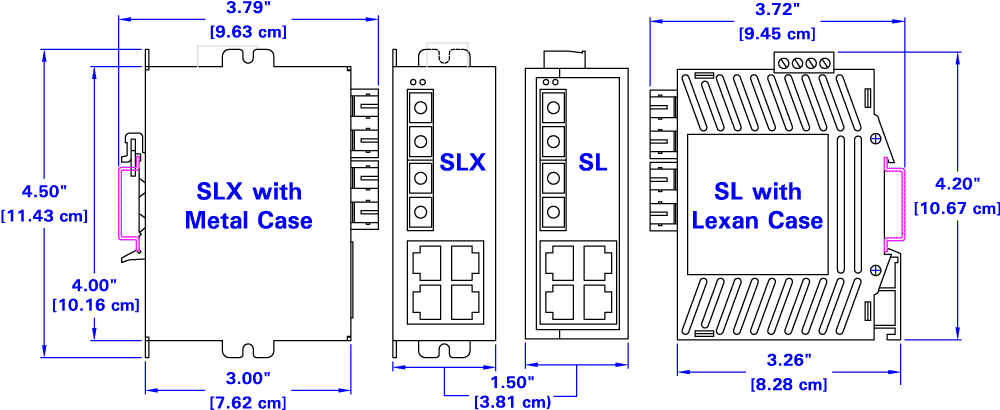

SL-SLX-6XS-145 Dimension Drawing - gif_Drawing SL-SLX-6XS-145 Dimension Drawing - gif

SL-SLX-6XS-145 Dimension Drawing - pdf_SL-SLX-6XS-145 Dimension Drawing - pdf

SL/SLX Product Manual_SLSLX Product Manual

SL/SLX-6RS Series Installation Guide_SLSLX-6RS Series Installation Guide

SL-SLX-6XS-145 CAD Drawing_SL-SLX-6XS-145 CAD Drawing.dwg
