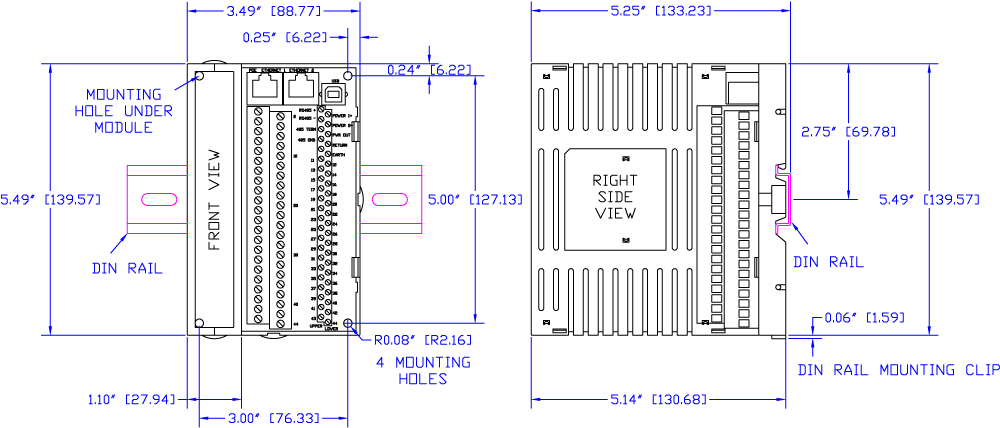

Red Lion Sixnet EB-10RTD-D EtherTrak distributed I/O module provides 10 RTD inputs and Power over Ethernet (PoE) for industrial remote monitoring and control. Designed for harsh environments, this module enables direct connection of RTD temperature sensors for precise temperature measurement and data acquisition in automation systems.

Analog Input Channels

• RTD input range: -200-850 deg C
• RTD overall accuracy: .05% or .5 deg C
• A/D resolution 16 bits (0.003%)
• Temperature coefficient +/- 50 ppm per °C (span and offset)
• RTD Type: 100 Ohm Platinum
• RTD Alpha: .00385 or .00392
• RTD Connections: 2 or 3-wire
• Scan time: 550 ms for all 10 channels
• Max lead wire resistance: 100 Ohms per side balanced
• RTD excitation current:  250uA pulsed to reduce self-heating

Serial Ports

RS-485 port, Screw terminals (485+, 485-, GND) (2-wire half-duplex, isolated)
Isolations voltage, 150V
RS-485 networking, Up to 32 (full-load) stations
RS-485 distance, Up to 0.5 miles (baud rate dependent)
Baud Rates from 150 to 57,600 baud
Protocols: master and slave: Sixnet and Modbus RTU / ASCII
Diagnostic LEDs: Transmit (TD) and Receive (RD)

​​Configuration

• Configured using Sixnet I/O Tool Kit
• Graphical User Interface (GUI)
