ET-8ES-MIL-1

Image for Illustration purposes only. Actual product may vary

View in markdown

Red Lion Sixnet ET-8ES-MIL-1 8-port unmanaged industrial Ethernet switch with IP67-rated sealed enclosure for harsh environments. Operates from -40C to 75C, suitable for outdoor, washdown, and extreme-temperature applications. Provides reliable copper Ethernet connectivity in demanding industrial settings without configuration.

MODEL ET-8ES-MIL-1

BRAND

Red Lion Controls

SKU

2302998

UOM

each

Contact supplier for technical support on: 717 767 6511 x2

Call for Pricing - 888-671-2883

Typically Ships in: 1 day

Returnable: See conditions

Operating Temperature

-40C to 75C

Specifications:

Unmanaged Plug and Play Operation
8 Port Industrial IP67 Ethernet Switch
- Eight 10/100BaseTX with MIL-DTL-38999 series III connectors
IEEE 802.3 Compliance
Extended Environmental Specifications
- -40° to 75°C Operating Temperature
- >2M+ Hours MTBF
Supports Full/Half Duplex Operation
MDIX Auto Sensing Cable
Auto Sensing Speed and Flow Control
Surge Protection on Power Inputs
Redundant Power Inputs (10-30 VDC)
Rated for MIL-STD-810F, MIL-STD-461E and MIL-STD-1275B
LED Link/Activity Status Indication
Hardened Aluminum Enclosure with Bulkhead Mounting

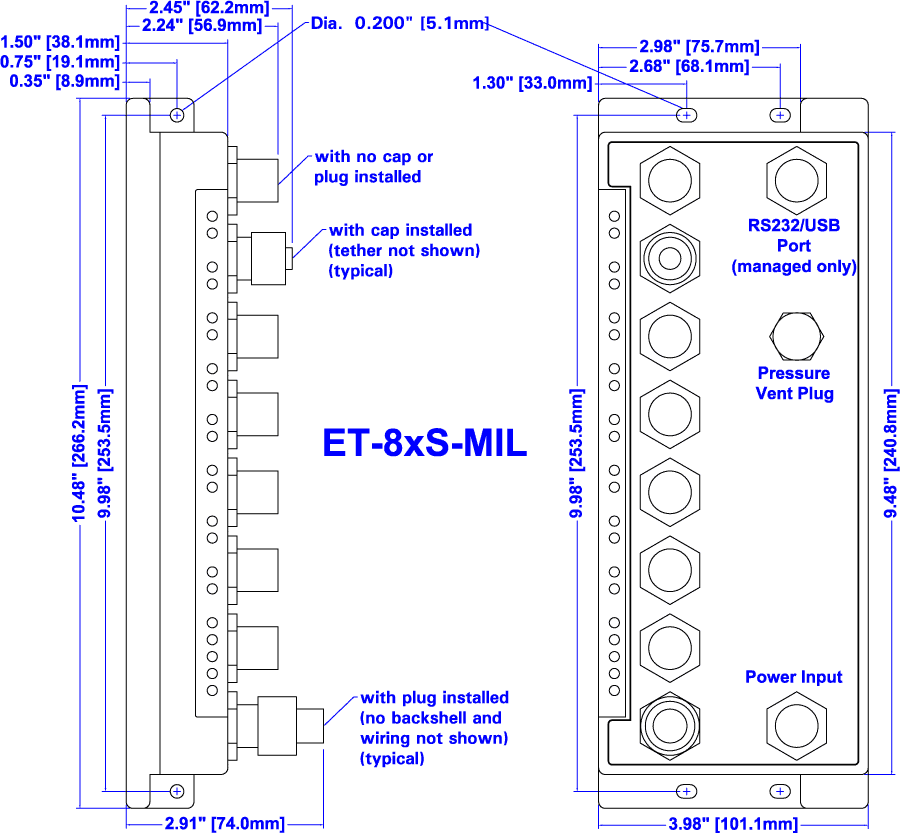

ET-8XS-MIL Dimension Drawing_Drawing ET-8XS-MIL Dimension Drawing

ET-8xS-MIL Data Sheet_ET-8xS-MIL Data Sheet

ET-8xS-MIL Installation Guide_ET-8xS-MIL Installation Guide

ET-8XS-MIL CAD Drawing_ET-8XS-MIL CAD Drawing.dwg
