FAG N334-E-TB-M1 single row cylindrical roller bearing with 170mm bore and 360mm OD. Features a 40° contact angle and machined brass cage for high-speed and high-load applications. Suitable for radial and axial loads in industrial machinery.
MODEL N334-E-TB-M1
$4,677.36 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable:No
I.D.
6.693
Limiting speed
2800 1/min n G
Mass
37, 9 kg m
O.D.
14.173
Reference speed
1640 1/min n B
Specifications

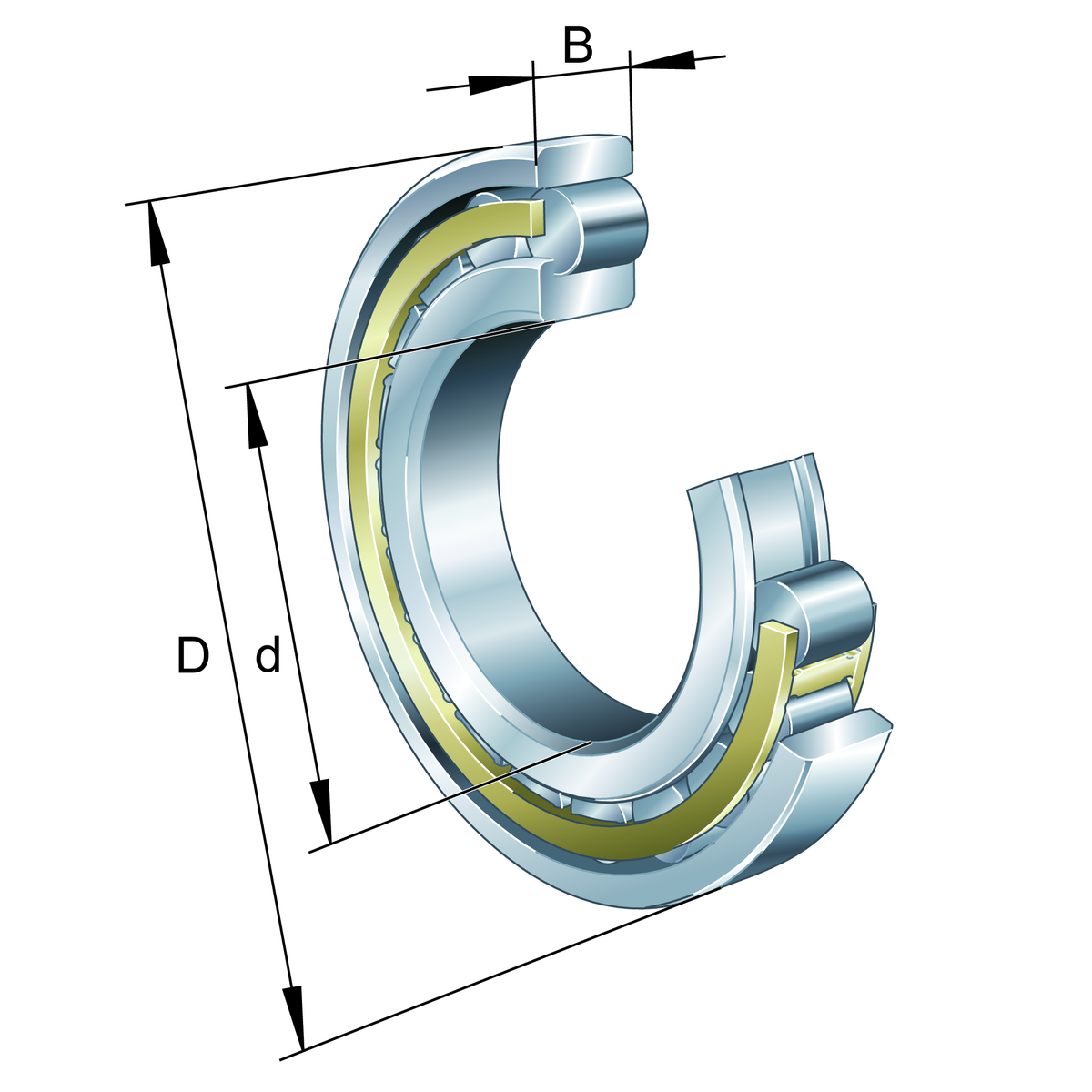

| d | 170 mm | |
| D | 360 mm | |
| B | 72 mm |
| D a max | 343 mm | |
| D b min | 320 mm | |
| D c max | 316 mm | |
| d 1 | 238 mm | |
| d a min | 187 mm | |
| E | 318 mm | |
| F | 218 mm | |
| r 1 min | 4 mm | |
| r a max | 3 mm | |
| r a1 max | 3 mm | |
| r min | 4 mm | |
| Axial displacement facility from central position | 5, 9 mm | s |
| Mass | 37, 9 kg | m |
|---|---|---|
| Basic dynamic load rating, radial | 960000 N | C r |
| Basic static load rating, radial | 1210000 N | C 0r |
| Limiting speed | 2800 1/min | n G |
| Reference speed | 1640 1/min | n B |
| Fatigue limit load, radial | 138000 N | C ur |
How do I choose the right type of bearing for my application?
Start with the load and how it’s applied. You need to know if you’re dealing with radial loads, axial loads, or a mix of both. Then look at speed, operating environment, and space constraints. For example, ball bearings are great for high speed and lighter loads, while roller bearings handle heavier loads but usually at lower speeds. If there’s contamination, moisture, or heat involved, you may need sealed bearings or specific materials. In most cases, the right choice comes down to matching load type, speed, and environment to the bearing design.
