Pramet SNMM 856-OR:T8430 7977398 Turning Insert - Negative
MODEL 7977398
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$43.23 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
OR
Coating
T8430
Coating process
PVD
Coating property (CTP)
1

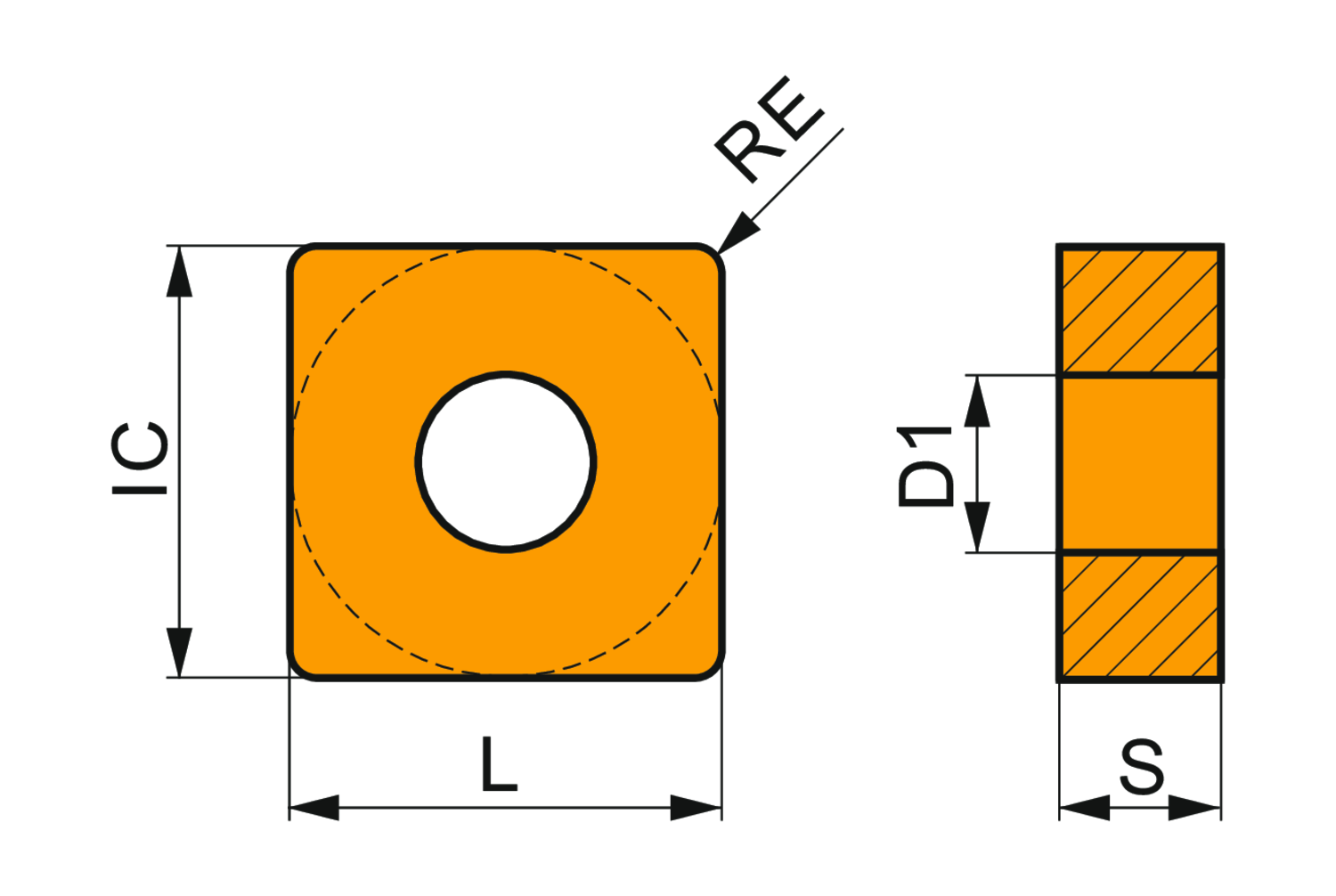

Corner radius - inch (RE)
0.094
Corner radius - millimeter (RE)
2.4
Cutting edge length - inch (L)
1
Cutting edge length - millimeter (L)
25.4
Fixing hole diameter - inch (D1)
0.359
Fixing hole diameter - millimeter (D1)
9.12
Inscribed circle diameter - inch (IC)
1
Inscribed circle diameter - millimeter (IC)
25.4
Insert shape code (SC)
S - square
Insert thickness - inch (S)
0.313
Insert thickness - millimeter (S)
7.94
Single-sided negative turning insert, square with inscribed circle diameter of 25.4mm, 7.94mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker OR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for medium to extra heavy machining of steels
