Pramet CCMT 32.52-RM:T8430 positive turning insert — CCMT 32.52 (ISO CCMT 09T308E), RM roughing-medium chipbreaker, T8430 PVD grade, 3/8 in (9.525 mm) IC, 5/32 in (3.97 mm) thick, 0.8 mm corner radius. Article 7973820.

Name: Pramet CCMT 32.52-RM:T8430 positive turning insert — CCMT 32.52 (ISO CCMT 09T308E), RM roughing-medium chipbreaker, T8430 PVD grade, 3/8 in (9.525 mm)
Brand: Pramet
Price: 11.35 USD
Availability: InStock

MODEL 7973820

BRAND

Pramet

SKU

6057957

WEIGHT

0.008 lb

UOM

each

This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.

$11.35 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity(10 minimum)

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Chipbreaker

Coating

T8430

Coating process

PVD

Coating property (CTP)

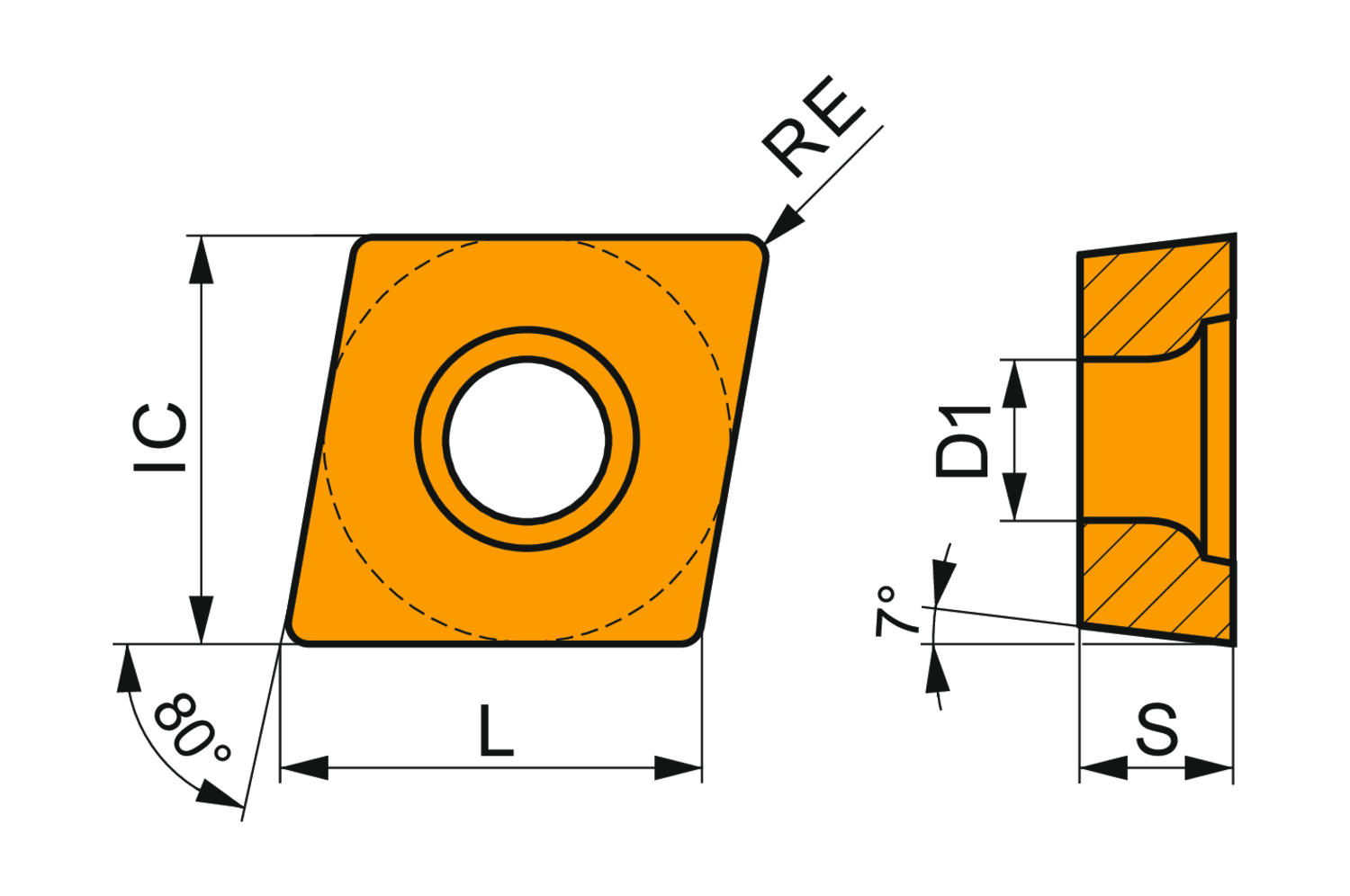

Corner radius - inch (RE)

0.031

Corner radius - millimeter (RE)

0.8

Cutting edge length - inch (L)

0.382

Cutting edge length - millimeter (L)

9.7

Fixing hole diameter - inch (D1)

0.173

Fixing hole diameter - millimeter (D1)

4.4

Inscribed circle diameter - inch (IC)

0.375

Inscribed circle diameter - millimeter (IC)

9.525

Insert shape code (SC)

C - rhombic 80° included angle

Insert thickness - inch (S)

0.156

Insert thickness - millimeter (S)

3.97

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for fine to heavy machining of steels and stainless-steels
