Pramet DCMT 21.50.5-FM:T8430 7973828 Turning Insert - Positive
MODEL 7973828
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$7.99 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
T8430
Coating process
PVD
Coating property (CTP)
1

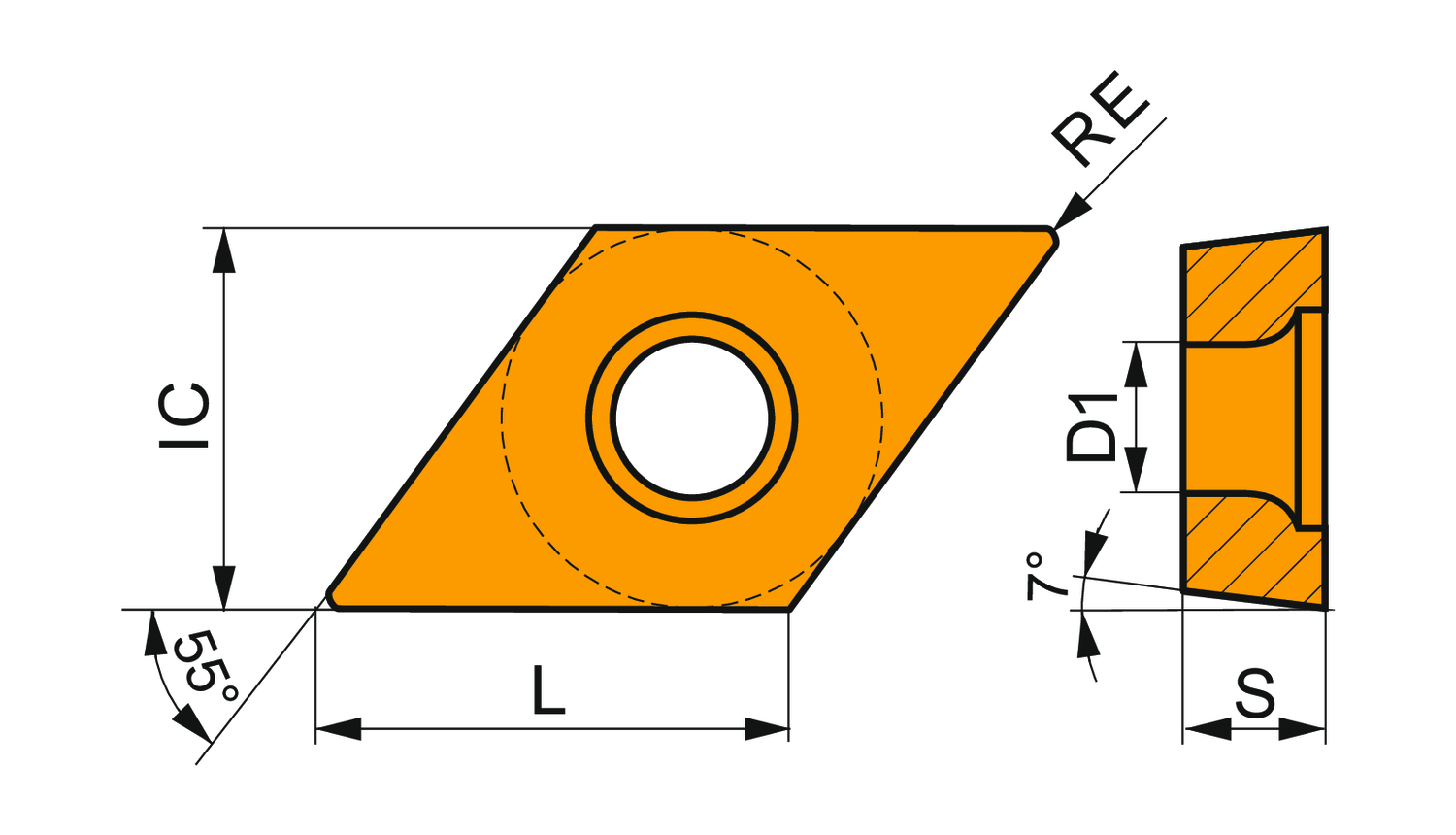

Corner radius - inch (RE)
0.008
Corner radius - millimeter (RE)
0.2
Cutting edge length - inch (L)
0.307
Cutting edge length - millimeter (L)
7.8
Fixing hole diameter - inch (D1)
0.11
Fixing hole diameter - millimeter (D1)
2.8
Inscribed circle diameter - inch (IC)
0.25
Inscribed circle diameter - millimeter (IC)
6.35
Insert shape code (SC)
D - rhombic 55° included angle
Insert thickness - inch (S)
0.094
Insert thickness - millimeter (S)
2.38
Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for fine to medium machining of steels and stainless-steels
