Image for Illustration purposes only. Actual product may vary
Pramet VBMT 331-FM:T8430 7973869 Turning Insert - Positive
MODEL 7973869
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$14.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
FM
Coating
T8430
Coating process
PVD
Coating property (CTP)
1

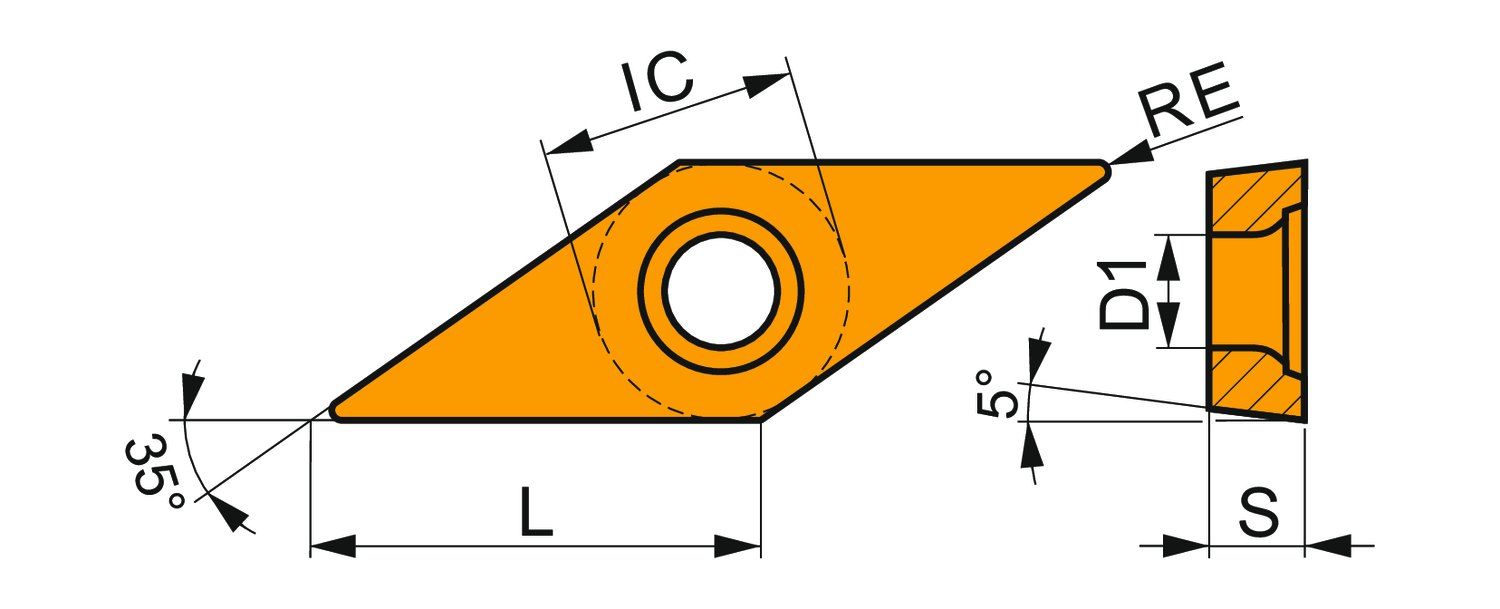

Corner radius - inch (RE)
0.016
Corner radius - millimeter (RE)
0.4
Cutting edge length - inch (L)
0.654
Cutting edge length - millimeter (L)
16.6
Fixing hole diameter - inch (D1)
0.173
Fixing hole diameter - millimeter (D1)
4.4
Inscribed circle diameter - inch (IC)
0.375
Inscribed circle diameter - millimeter (IC)
9.525
Insert shape code (SC)
V - rhombic 35° included angle
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 9.525mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for fine to medium machining of steels and stainless-steels
