Pramet KNUX 160405SR-73:6640 6751686 Turning Insert - Negative
MODEL 6751686
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$12.88 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
73
Coating
6640
Coating process
MT-CVD
Coating property (CTP)
1
Cooling effect
Positive effect on tool life - cooling is recommended
Corner radius - inch (RE)
0.02
Corner radius - millimeter (RE)
0.5
Cutting edge length - inch (L)
0.768
Cutting edge length - millimeter (L)
19.5
Depth of cut maximum - inch (APMX)
0.189
Depth of cut maximum - millimeter (APMX)
4.8
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.3
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.012
Feed_MIN_IMP_NUM
0.008

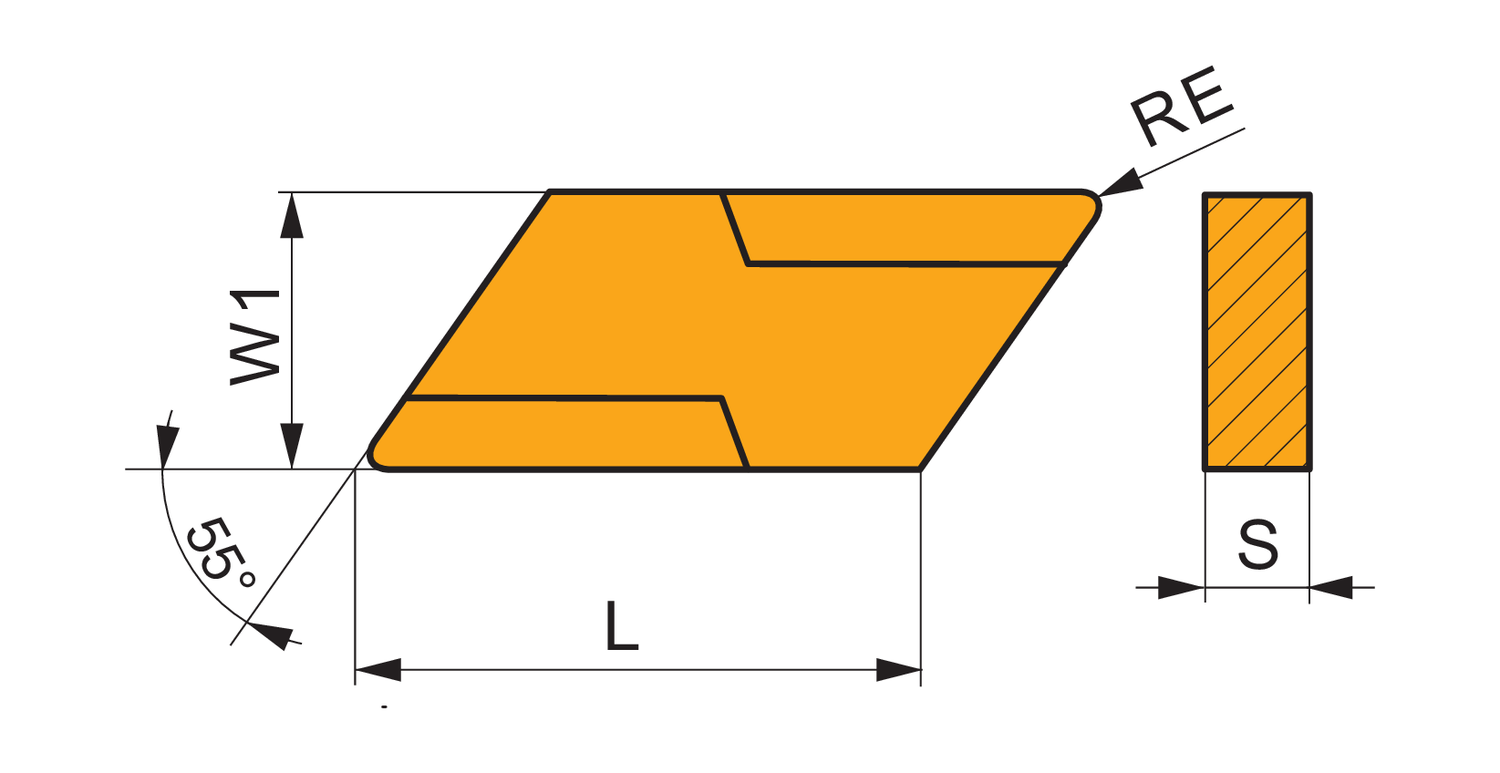

Insert shape code (SC)
K - parallelogram 55° included angle
Insert thickness - inch (S)
0.187
Insert thickness - millimeter (S)
4.76
Insert width - inch (W1)
0.375
Insert width - millimeter (W1)
9.525
Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 73 with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20-P40 and M20-M35, for medium to heavy machining of steels and stainless-steels with a right handed turning tool
