Pramet RCGX 120700 K15015:TC100 positive turning insert — RCGX 120700 K15015, round 7° clearance, 12.7 mm diameter, 7.94 mm thick, TC100 uncoated ceramic grade for high-speed machining of cast iron. Article 6755437.
MODEL 6755437
This product has a minimum order quantity of (10 minimum) This is the minimum order quantity available when purchasing this product.
$45.34 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity(10 minimum)
Typically Ships in: 1 day
Returnable: Yes
Chipbreaker
No chipbreaker
Coating
TC100
Cooling effect
Slightly negative effect on tool life
Depth of cut maximum - inch (APMX)
0.134
Depth of cut maximum - millimeter (APMX)
3.4
Depth of cut minimum - inch (APMN)
0.02
Depth of cut minimum - millimeter (APMN)
0.5
Feed maximal - millimeter
0.65
Feed minimal - millimeter
0.2
Feed_MAX_IMP_NUM
0.026
Feed_MIN_IMP_NUM
0.008

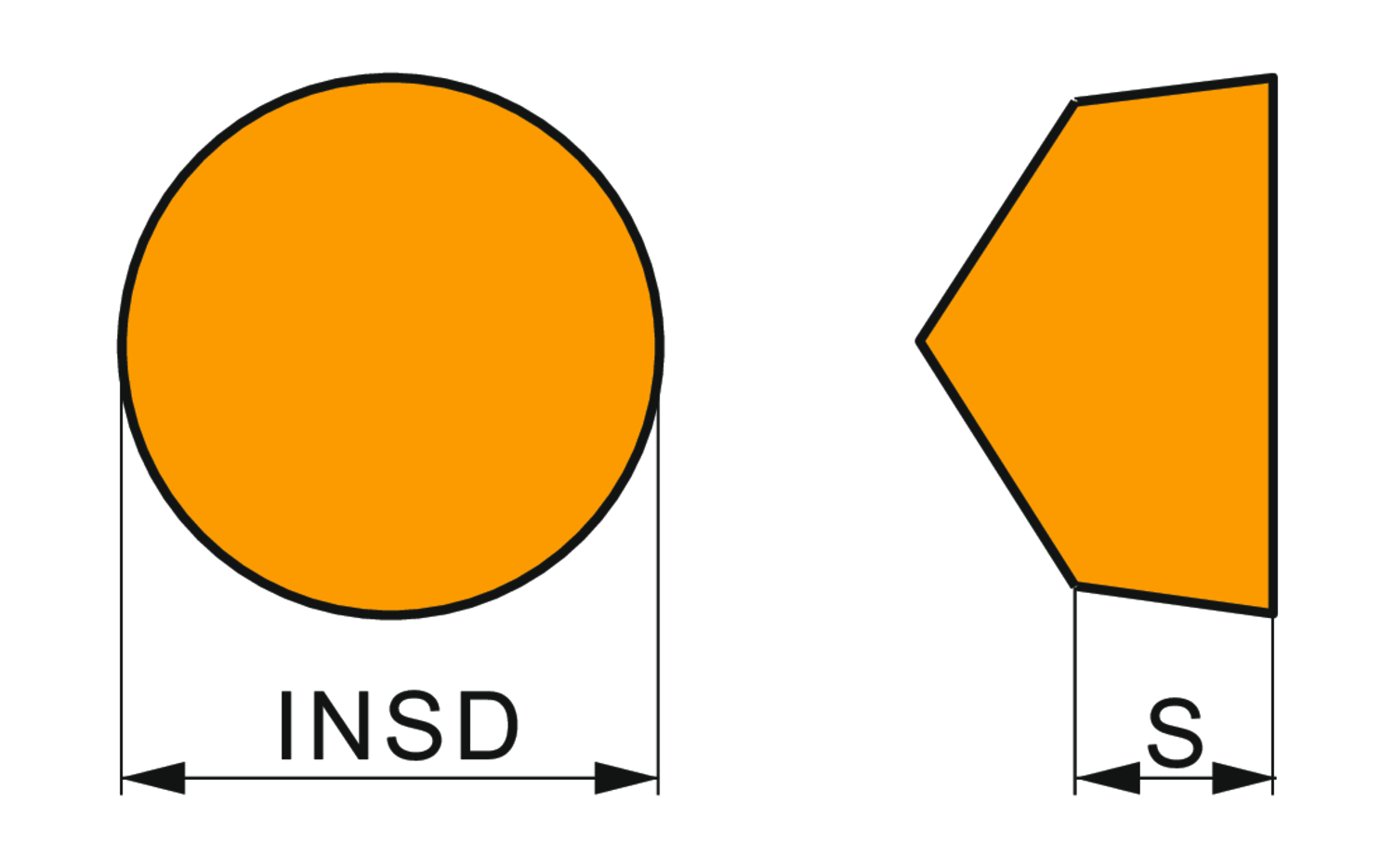

Insert diameter - inch (INSD)
0.5
Insert diameter - millimeter (INSD)
12.7
Insert shape code (SC)
R - round
Insert thickness - inch (S)
0.313
Insert thickness - millimeter (S)
7.94
Single-sided turning insert, round 7° clearance, a diameter of 12.7mm, 7.94mm thick, indexing accuracy according to ISO-tolerance class-G, cutting edges with double facet T-land -15°/1.5mm, in grade TC100, an uncoated ceramic within ISO range K01-K15, for high-speed machining of cast-irons
