Pramet A0508H-SWUCR 02 boring bar, ISO S, right hand, 0.197 in body diameter, 3.937 in functional length, 0.228 in minimum bore diameter, screw clamping through hole, coolant supply, for WC.. inserts. Article 6760579.
MODEL 6760579
$144.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

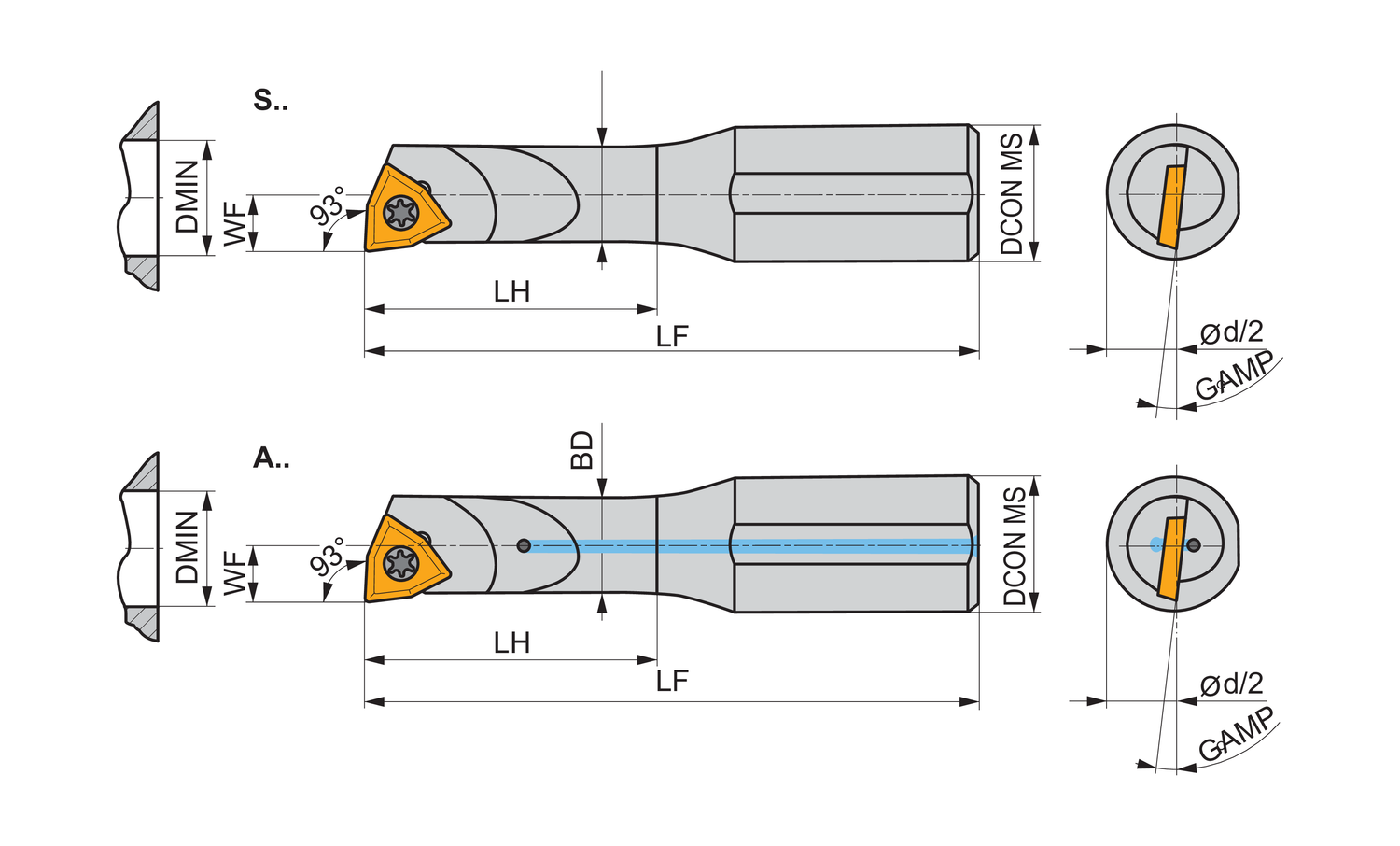

Axial rake angle (GAMP)
-17
Body diameter - inch (BD)
0.197
Body diameter - millimeter (BD)
5
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.114
Functional width - millimeter (WF)
2.9
Head length - inch (LH)
0.709
Head length - millimeter (LH)
18
Minimum bore diameter - inch (DMIN)
0.228
Minimum bore diameter - millimeter (DMIN)
5.8
Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 3.97mm, 1.59mm thick (ISO designation WC.. 0201.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 5mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder
