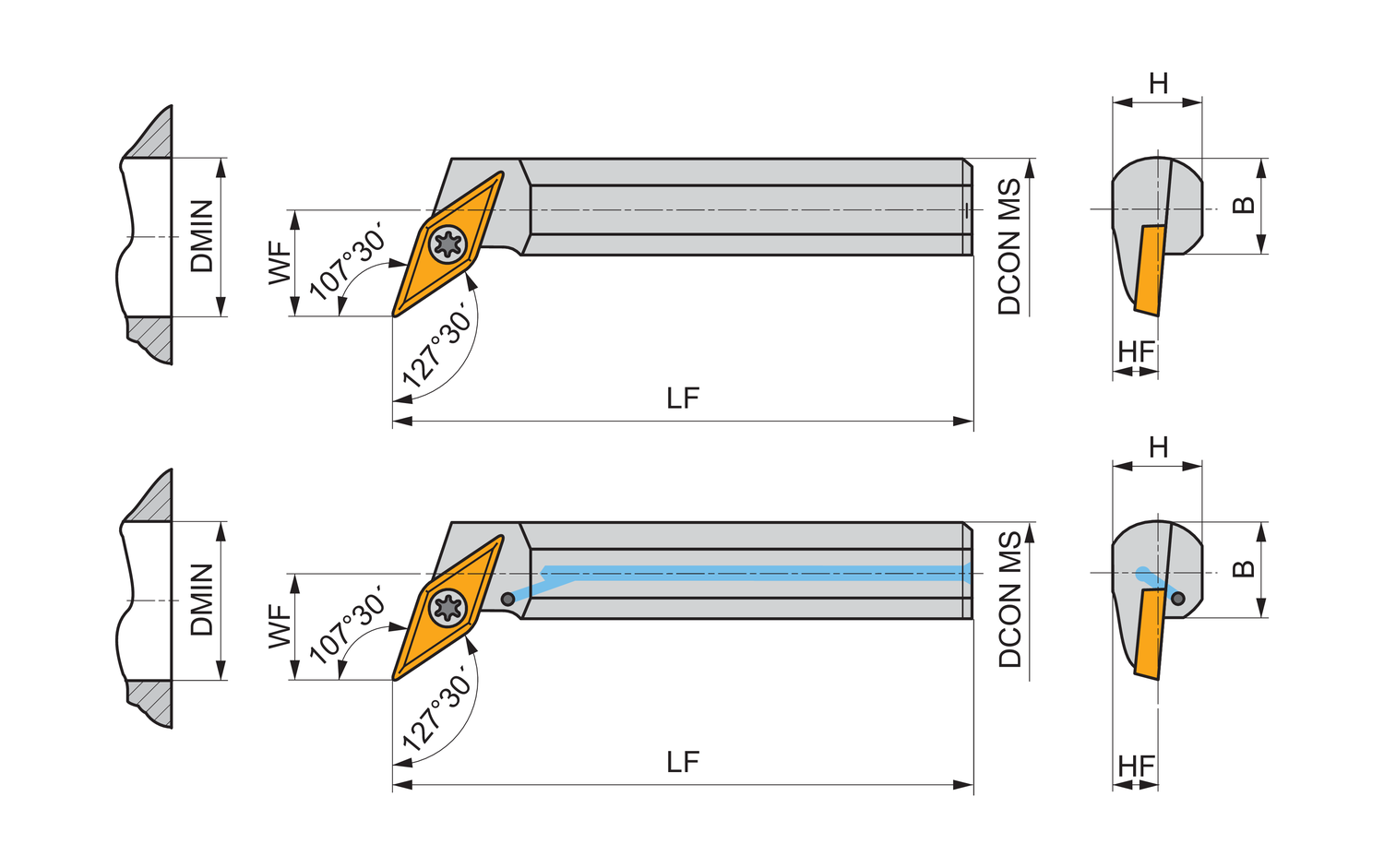

Pramet A16R-SVQBR 11 boring bar for VB.. 1103 inserts, ISO S, right hand, screw clamping through hole, 16 mm connection diameter, 200 mm functional length, 20 mm minimum bore diameter, coolant through. Article 6760320.

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.63

Connection diameter - millimeter (DCON MS)

16

Coolant supply property (CSP)

1

Direction of tool

Right

Functional length - inch (LF)

7.874

Functional length - millimeter (LF)

200

Functional width - inch (WF)

0.433

Functional width - millimeter (WF)

11

Inclination angle (LAMS)

-5

Minimum bore diameter - inch (DMIN)

0.787

Minimum bore diameter - millimeter (DMIN)

20

Ortogonal rake angle (GAMO)

0

Shank height - inch (H)

0.571

Shank height - millimeter (H)

14.5

Shank width - inch (B)

0.591

Shank width - millimeter (B)

15
