Pramet A16T-DWLNR 4 boring bar, ISO D, right hand, 12 in functional length, 1.299 in minimum bore diameter, 1 in connection diameter, for WN.. 43. inserts. Article 6788483.
MODEL 6788483
$316.22 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

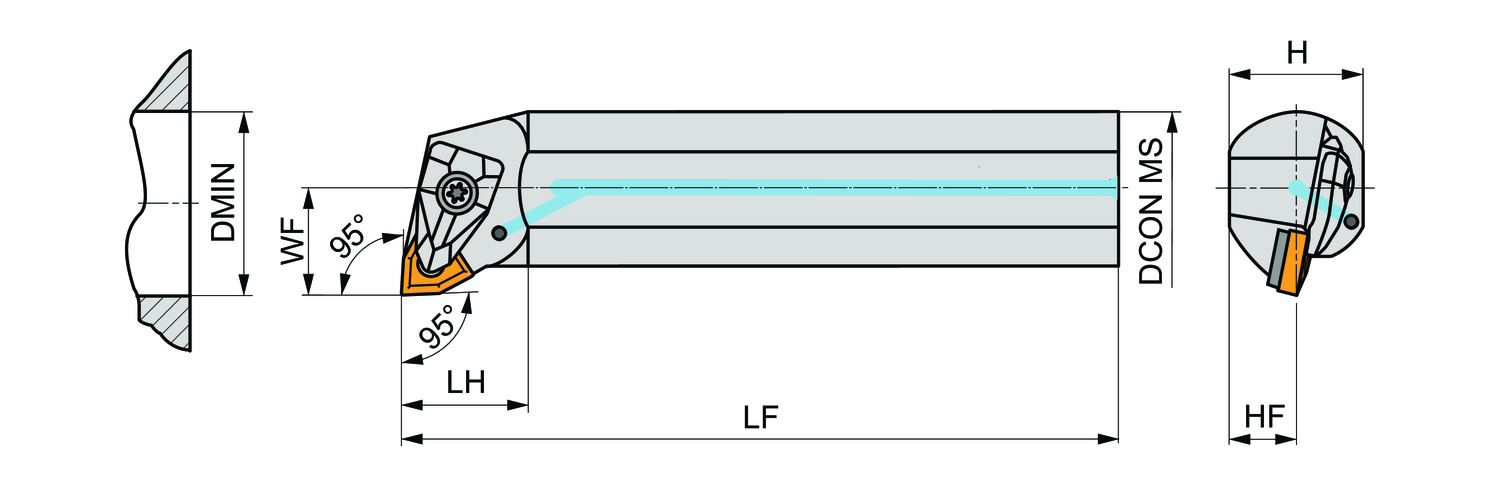

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1
Connection diameter - millimeter (DCON MS)
25.4
Functional length - inch (LF)
12
Functional width - inch (WF)
0.75
Head length - inch (LH)
1.339
Inclination angle (LAMS)
-12
Minimum bore diameter - inch (DMIN)
1.299
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.906
Double clamp boring bar for holding a 80° trigon negative insert with an inscribed circle diameter of 1/2'', 3/16'' thick (ANSI designation WN.. 43. ), right hand 95° side and end cutting with off-set shank, steel with coolant hole, 1'' diameter x 12'' long for taper boring and longitudinal boring with and without shoulder
