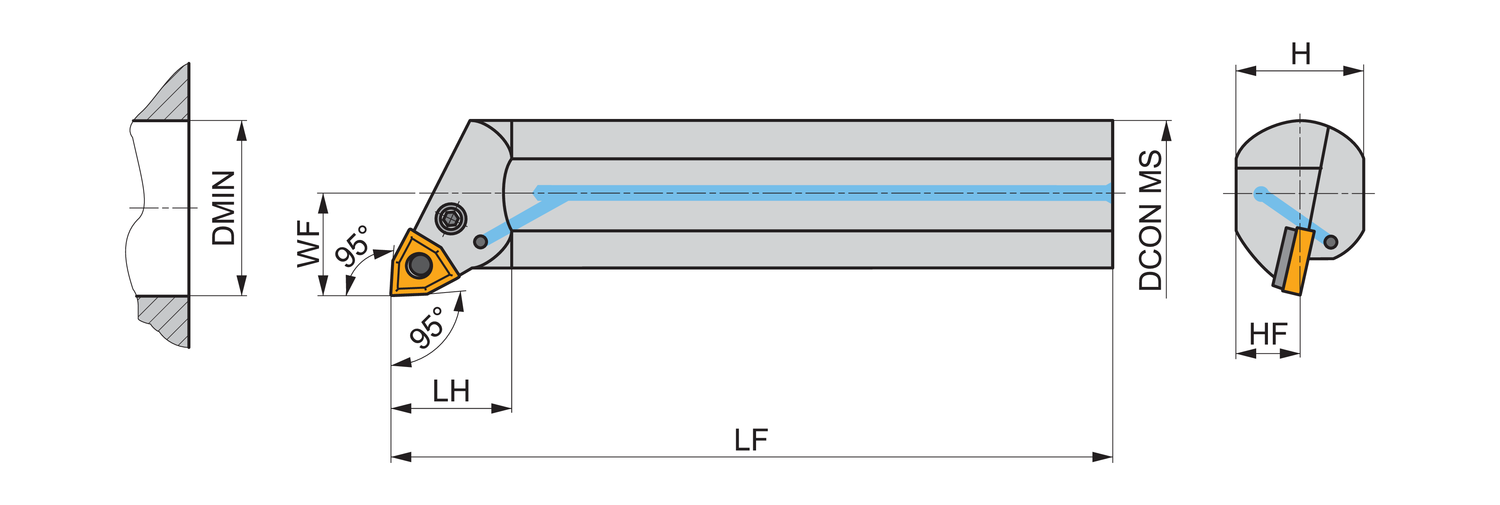

Pramet A25R-PWLNR 08 boring bar — ISO P, right hand, 25 mm connection diameter, 200 mm functional length, 32 mm minimum bore diameter, 95° tool cutting edge angle, for WN.. 0804 inserts. Article 6758464.

Clamping Type Code (MTP)

Hole clamping

Connection diameter - inch (DCON MS)

0.984

Connection diameter - millimeter (DCON MS)

25

Coolant supply property (CSP)

1

Direction of tool

Right

Functional height - inch (HF)

0.453

Functional height - millimeter (HF)

11.5

Functional length - inch (LF)

7.874

Functional length - millimeter (LF)

200

Functional width - inch (WF)

0.669

Functional width - millimeter (WF)

17

Head length - inch (LH)

1.575

Head length - millimeter (LH)

40

Inclination angle (LAMS)

-12

Minimum bore diameter - inch (DMIN)

1.22

Minimum bore diameter - millimeter (DMIN)

32

Ortogonal rake angle (GAMO)

-6

Shank height - inch (H)

0.906

Shank height - millimeter (H)

23

Shank width - inch (B)

0.906

Shank width - millimeter (B)

23
