Pramet A25T-DCLNL 09 6758096 Boring Bar ISO D - Left Hand
MODEL 6758096
$287.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

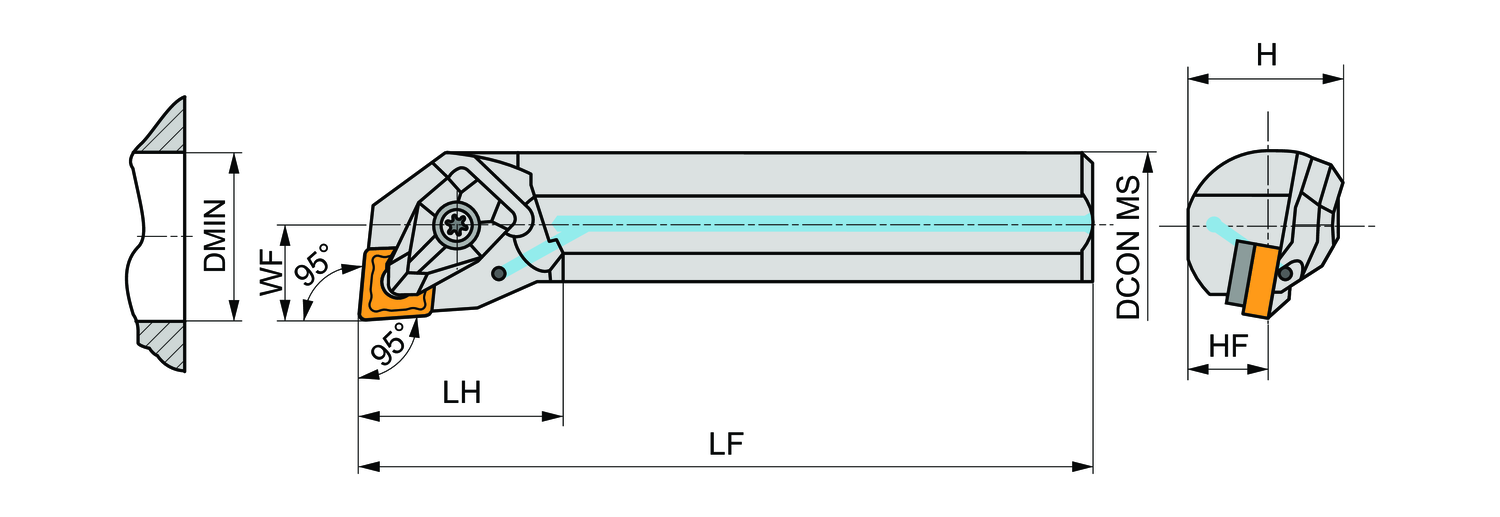

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Coolant supply property (CSP)
1
Direction of tool
Left
Functional height - inch (HF)
0.453
Functional height - millimeter (HF)
11.5
Functional length - inch (LF)
11.811
Functional length - millimeter (LF)
300
Functional width - inch (WF)
0.669
Functional width - millimeter (WF)
17
Head length - inch (LH)
1.22
Head length - millimeter (LH)
31
Inclination angle (LAMS)
-11
Minimum bore diameter - inch (DMIN)
1.26
Minimum bore diameter - millimeter (DMIN)
32
Ortogonal rake angle (GAMO)
-6
Shank height - inch (H)
0.906
Shank height - millimeter (H)
23
Double clamp boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 9.525mm, 3.18mm thick (ISO designation CN.. 0903.. ), left hand 95° side and end cutting with off-set shank, steel with coolant hole, 25mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder
