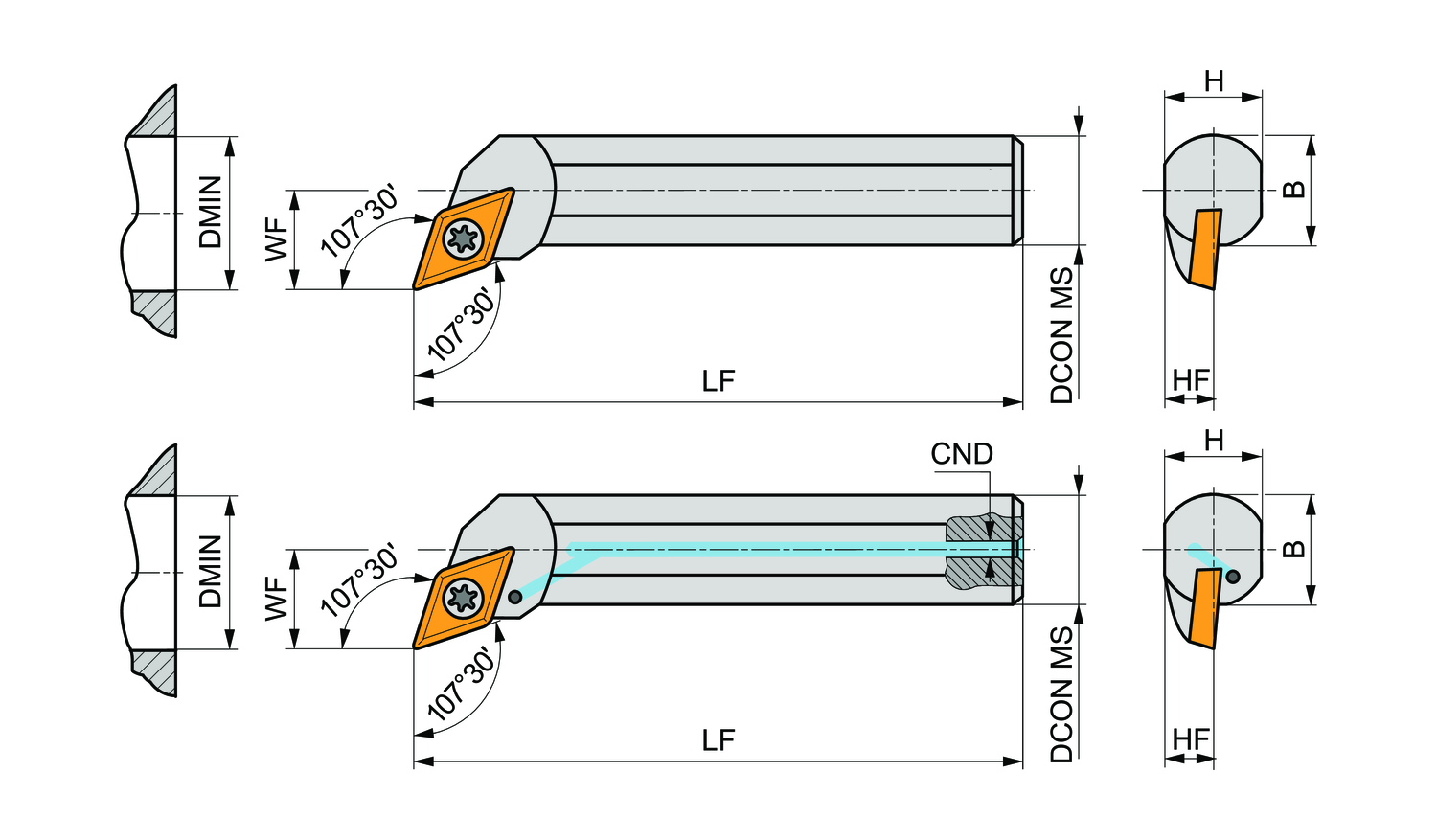

Pramet A32S-SDQCR 11-A boring bar, ISO S, right hand, 9.843 in functional length, 1.575 in minimum bore diameter, 1.26 in connection diameter, screw clamping through hole, for DC.. inserts.

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

1.26

Connection diameter - millimeter (DCON MS)

32

Coolant entry diameter - millimeter (CND)

8

Coolant supply property (CSP)

1

Direction of tool

Right

Functional length - inch (LF)

9.843

Functional length - millimeter (LF)

250

Functional width - inch (WF)

0.866

Functional width - millimeter (WF)

22

Inclination angle (LAMS)

-10

Minimum bore diameter - inch (DMIN)

1.575

Minimum bore diameter - millimeter (DMIN)

40

Ortogonal rake angle (GAMO)

0

Shank height - inch (H)

1.181

Shank height - millimeter (H)

30

Shank width - inch (B)

1.181

Shank width - millimeter (B)

30
