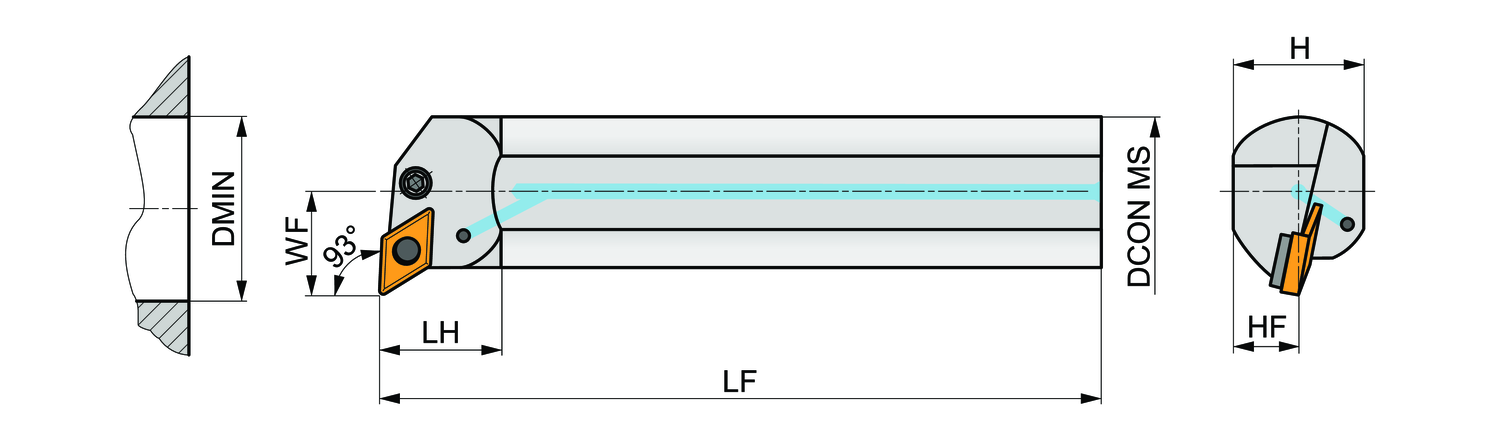

Pramet A50U-PDUNR 15 boring bar for DN.. 1506.. negative inserts, right hand, 93° cutting edge angle, 50 mm connection diameter, 350 mm functional length, 63 mm minimum bore diameter, coolant through. Article 6757216.

Clamping Type Code (MTP)

Hole clamping

Connection diameter - inch (DCON MS)

1.969

Connection diameter - millimeter (DCON MS)

50

Coolant supply property (CSP)

1

Direction of tool

Right

Functional height - inch (HF)

0.925

Functional height - millimeter (HF)

23.5

Functional length - inch (LF)

13.78

Functional length - millimeter (LF)

350

Functional width - inch (WF)

1.378

Functional width - millimeter (WF)

35

Head length - inch (LH)

2.362

Head length - millimeter (LH)

60

Inclination angle (LAMS)

-12

Minimum bore diameter - inch (DMIN)

2.402

Minimum bore diameter - millimeter (DMIN)

63

Ortogonal rake angle (GAMO)

-6

Shank height - inch (H)

1.85

Shank height - millimeter (H)

47

Shank width - inch (B)

1.909

Shank width - millimeter (B)

48.5
