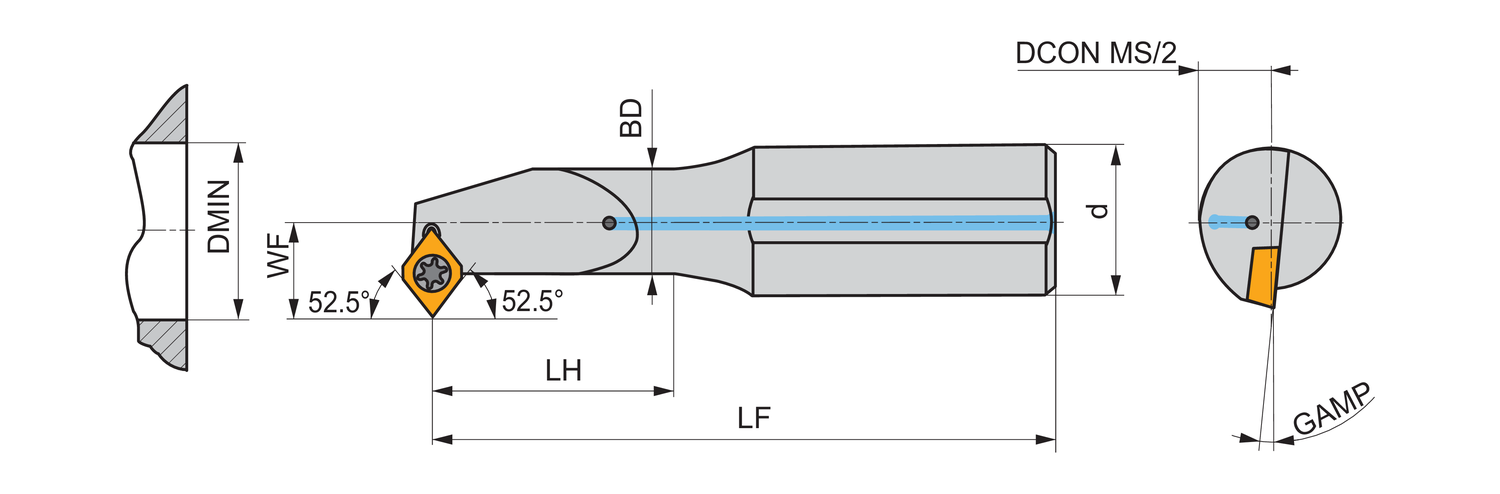

Pramet E0608H-SEXPL 05 boring bar — screw clamp through hole, left hand, ISO S, 6 mm body diameter, 100 mm functional length, 9.5 mm minimum bore diameter, 52.5° cutting edge angle, coolant through. Article 6760772.
MODEL 6760772
$487.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Axial rake angle (GAMP)
-7
Body diameter - inch (BD)
0.236
Body diameter - millimeter (BD)
6
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
3.937
Functional length - millimeter (LF)
100
Functional width - inch (WF)
0.217
Functional width - millimeter (WF)
5.5
Head length - inch (LH)
1.102
Head length - millimeter (LH)
28
Minimum bore diameter - inch (DMIN)
0.374
Minimum bore diameter - millimeter (DMIN)
9.5
Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), left hand special tool style, carbide with coolant hole, 6mm diameter x 100mm long for taper boring, single and multi-directional copy boring and back chamfering
