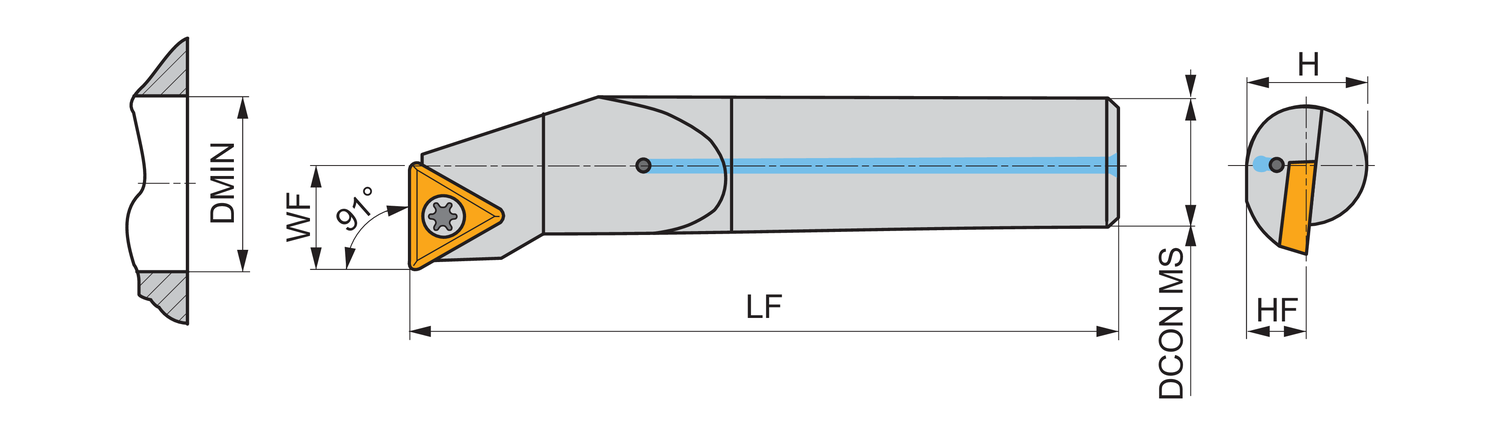

Pramet E06H-STFCR 06-R boring bar — screw clamp through hole, right hand, 90° tool cutting edge angle, 0.236 in (6 mm) shank diameter, 3.937 in (100 mm) functional length, 0.335 in (8.5 mm) minimum bore diameter, coolant through. Article 6760495.

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.236

Connection diameter - millimeter (DCON MS)

6

Coolant supply property (CSP)

1

Direction of tool

Right

Functional height - inch (HF)

0.118

Functional height - millimeter (HF)

3

Functional length - inch (LF)

3.937

Functional length - millimeter (LF)

100

Functional width - inch (WF)

0.177

Functional width - millimeter (WF)

4.5

Inclination angle (LAMS)

-10

Minimum bore diameter - inch (DMIN)

0.335

Minimum bore diameter - millimeter (DMIN)

8.5

Ortogonal rake angle (GAMO)

0

Shank height - inch (H)

0.236

Shank height - millimeter (H)

6
