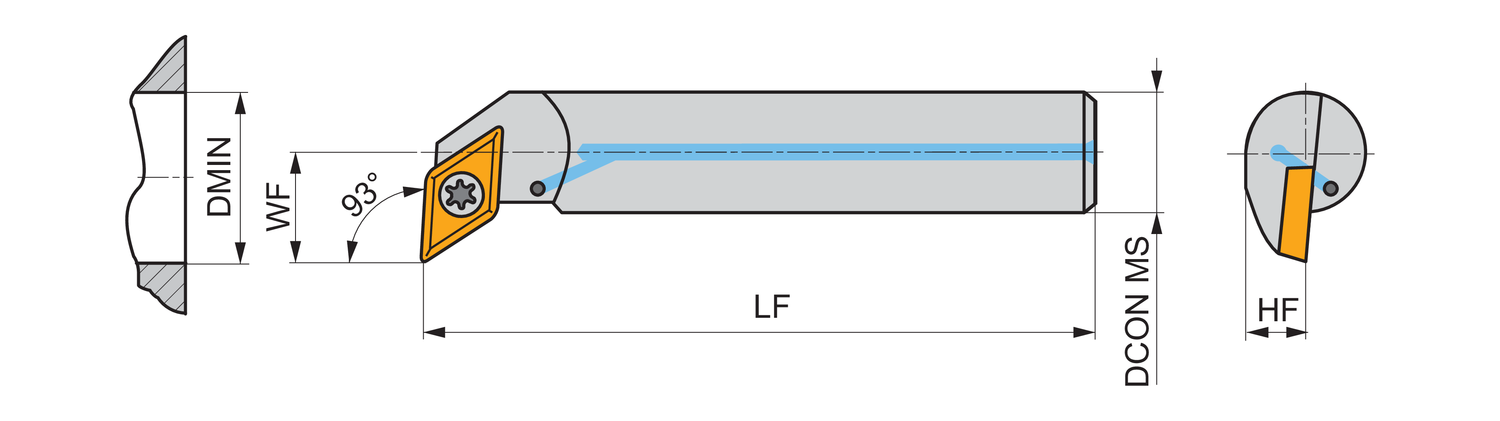

Pramet E10M-SDUCR 07-ER boring bar — screw clamp through hole, right hand, 93° cutting edge angle, 0.591 in minimum bore diameter, 5.906 in functional length, 10 mm connection diameter, coolant supply. Article 6760499.

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.394

Connection diameter - millimeter (DCON MS)

10

Coolant supply property (CSP)

1

Direction of tool

Right

Functional height - inch (HF)

0.22

Functional height - millimeter (HF)

5.6

Functional length - inch (LF)

5.906

Functional length - millimeter (LF)

150

Functional width - inch (WF)

0.354

Functional width - millimeter (WF)

9

Inclination angle (LAMS)

-5

Minimum bore diameter - inch (DMIN)

0.591

Minimum bore diameter - millimeter (DMIN)

15

Ortogonal rake angle (GAMO)

0
