Pramet E10M-STFCL 09-R 6760500 Boring Bar Carbide ISO S - Left Hand
MODEL 6760500
$387.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

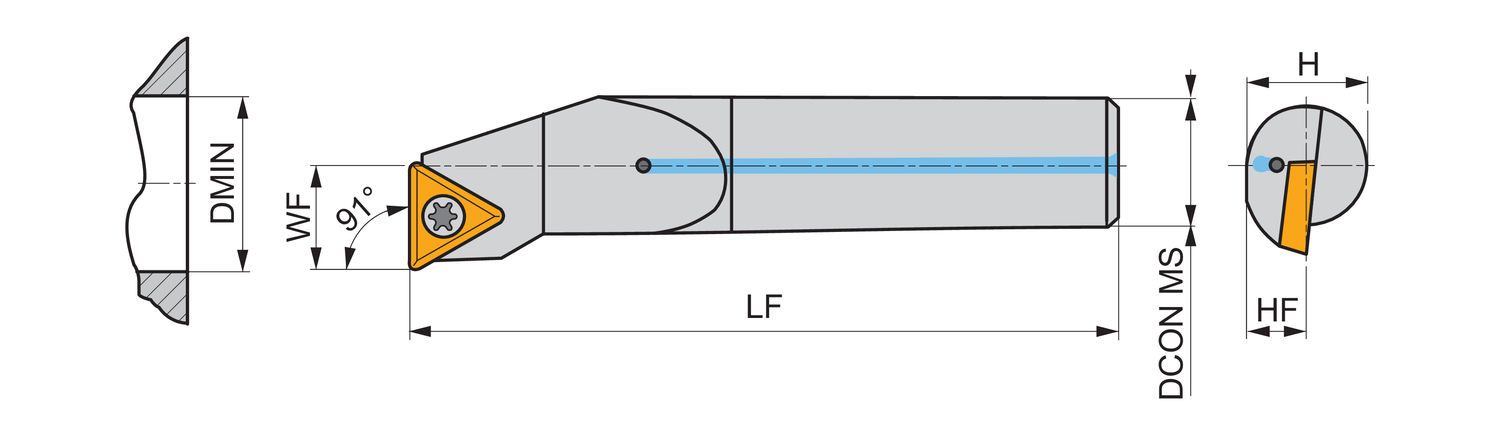

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Coolant supply property (CSP)
1
Direction of tool
Left
Functional height - inch (HF)
0.197
Functional height - millimeter (HF)
5
Functional length - inch (LF)
5.906
Functional length - millimeter (LF)
150
Functional width - inch (WF)
0.276
Functional width - millimeter (WF)
7
Inclination angle (LAMS)
-8
Minimum bore diameter - inch (DMIN)
0.512
Minimum bore diameter - millimeter (DMIN)
13
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.394
Shank height - millimeter (H)
10
Screw clamp boring bar for holding a triangular positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation TC.. 0902.. ), left hand 90° end cutting with off-set shank, carbide with coolant hole, 10mm diameter x 150mm long for taper boring and longitudinal boring with and without shoulder
