Pramet E1216M-SEXPR 05 boring bar — screw clamp for EP.. 0502 inserts, 12 mm body diameter, 150 mm functional length, 16 mm minimum bore diameter, right hand, carbide with coolant hole. Article 6760777.

Name: Pramet E1216M-SEXPR 05 boring bar — screw clamp for EP.. 0502 inserts, 12 mm body diameter, 150 mm functional length, 16 mm minimum bore diameter, rig
Brand: Pramet
Price: 999.43 USD
Availability: InStock

MODEL 6760777

BRAND

Pramet

SKU

6059570

WEIGHT

0.733 lb

UOM

each

$999.43 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Axial rake angle (GAMP)

-2

Body diameter - inch (BD)

0.472

Body diameter - millimeter (BD)

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.63

Connection diameter - millimeter (DCON MS)

Coolant supply property (CSP)

Direction of tool

Right

Functional length - inch (LF)

5.906

Functional length - millimeter (LF)

150

Functional width - inch (WF)

0.354

Functional width - millimeter (WF)

Head length - inch (LH)

2.165

Head length - millimeter (LH)

Minimum bore diameter - inch (DMIN)

0.63

Minimum bore diameter - millimeter (DMIN)

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand special tool style, carbide with coolant hole, 12mm diameter x 150mm long for taper boring, single and multi-directional copy boring and back chamfering

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

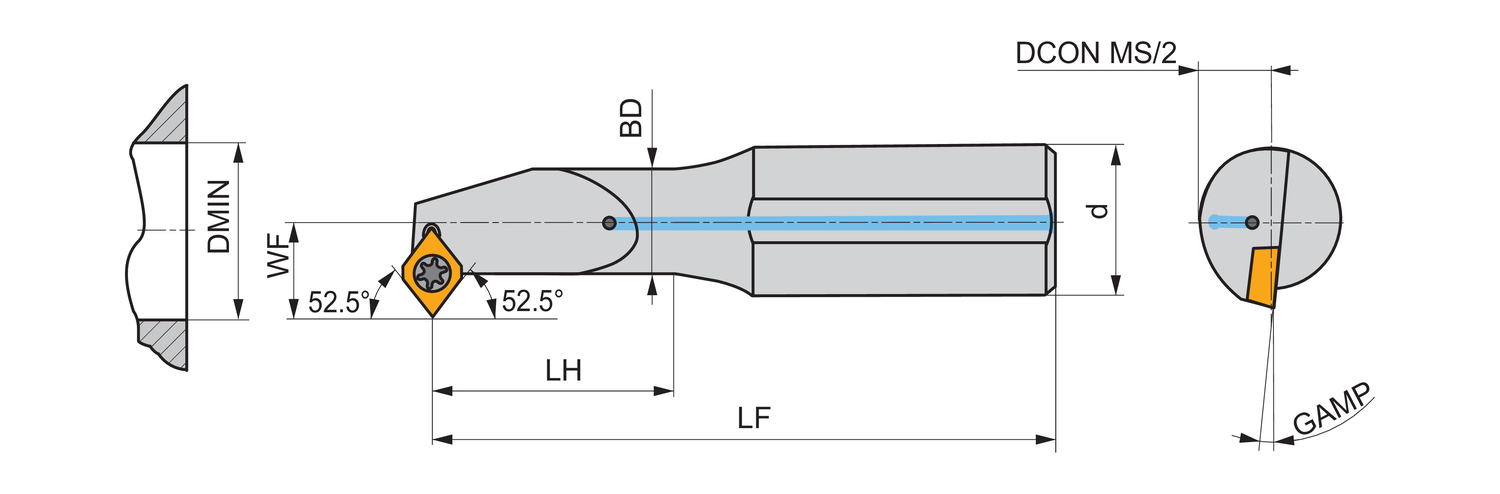

Line Drawing PNG
