Pramet S0608H-SELPR 05 boring bar — ISO S, right hand, 0.236 in (6 mm) body diameter, 3.937 in (100 mm) functional length, 0.315 in (8 mm) minimum bore diameter. Screw clamping through hole for EP.. 0502 inserts, 95° tool cutting edge angle. Article 6760463.

Name: Pramet S0608H-SELPR 05 boring bar — ISO S, right hand, 0.236 in (6 mm) body diameter, 3.937 in (100 mm) functional length, 0.315 in (8 mm) minimum bor
Brand: Pramet
Price: 144.89 USD
Availability: InStock

MODEL 6760463

BRAND

Pramet

SKU

6059586

WEIGHT

0.090 lb

UOM

each

$144.89 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Body diameter - inch (BD)

0.236

Body diameter - millimeter (BD)

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.315

Connection diameter - millimeter (DCON MS)

Direction of tool

Right

Functional length - inch (LF)

3.937

Functional length - millimeter (LF)

100

Functional width - inch (WF)

0.177

Functional width - millimeter (WF)

4.5

Head length - inch (LH)

0.787

Head length - millimeter (LH)

Inclination angle (LAMS)

-10

Minimum bore diameter - inch (DMIN)

0.315

Minimum bore diameter - millimeter (DMIN)

Ortogonal rake angle (GAMO)

Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 6mm diameter x 100mm long for taper boring and longitudinal boring with and without shoulder

When will I be charged for my order? Ordering Do you provide credit terms? Ordering Can I get a discounted price? I am a reseller / government entity. Ordering What is the return/warranty policy? Ordering Can it be shipped today? Ordering Does “Usually ships in 24 hours” mean it’s in stock? Ordering Read full FAQ All FAQs

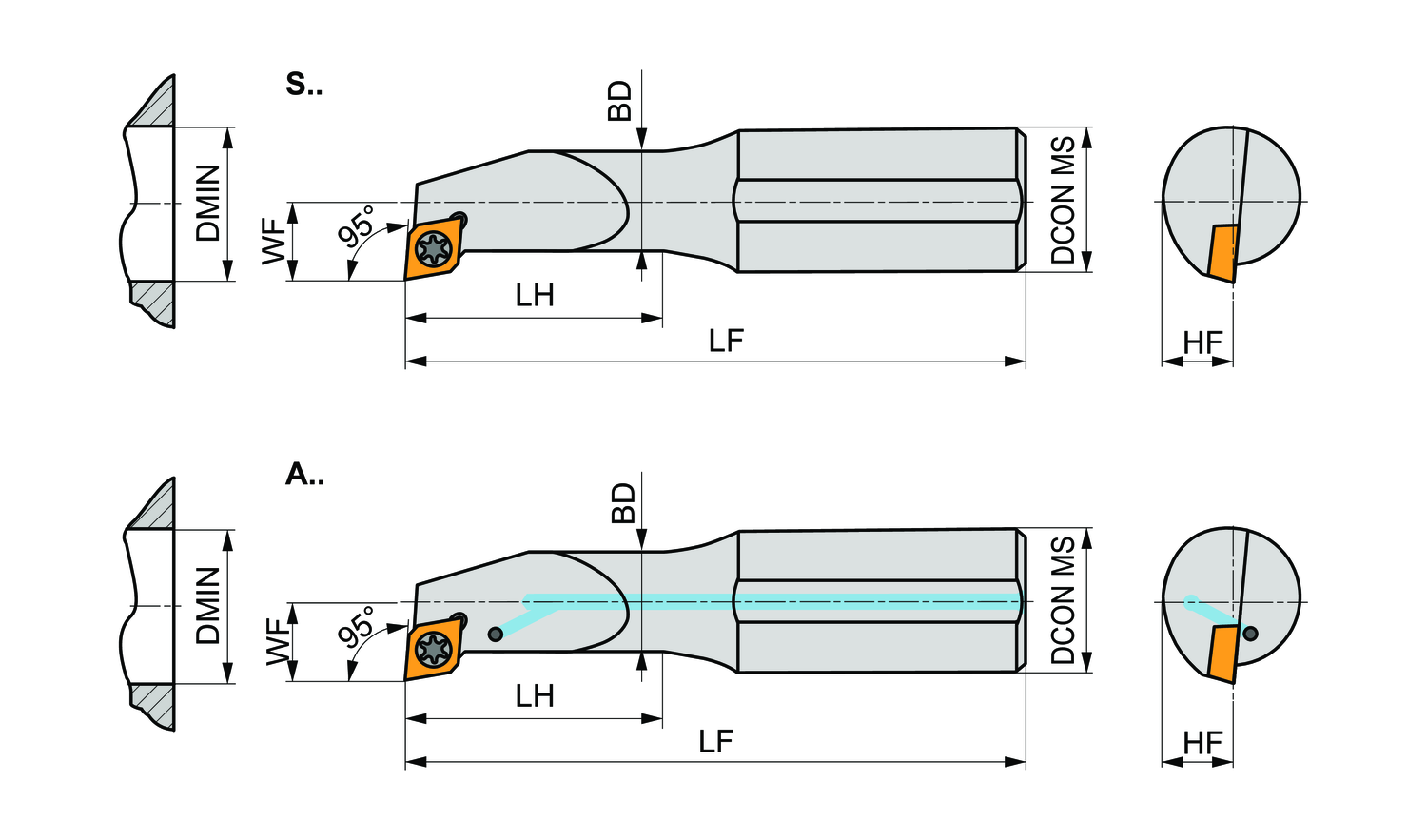

Line Drawing PNG
