Pramet S0810J-SELPR 05 boring bar — ISO S, right hand, screw clamping through hole, 0.315 in (8 mm) body diameter, 4.331 in (110 mm) functional length, 0.433 in (11 mm) minimum bore diameter, 95° tool cutting edge angle, for EP.. 0502 inserts. Article 6760467.
MODEL 6760467
$144.89 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

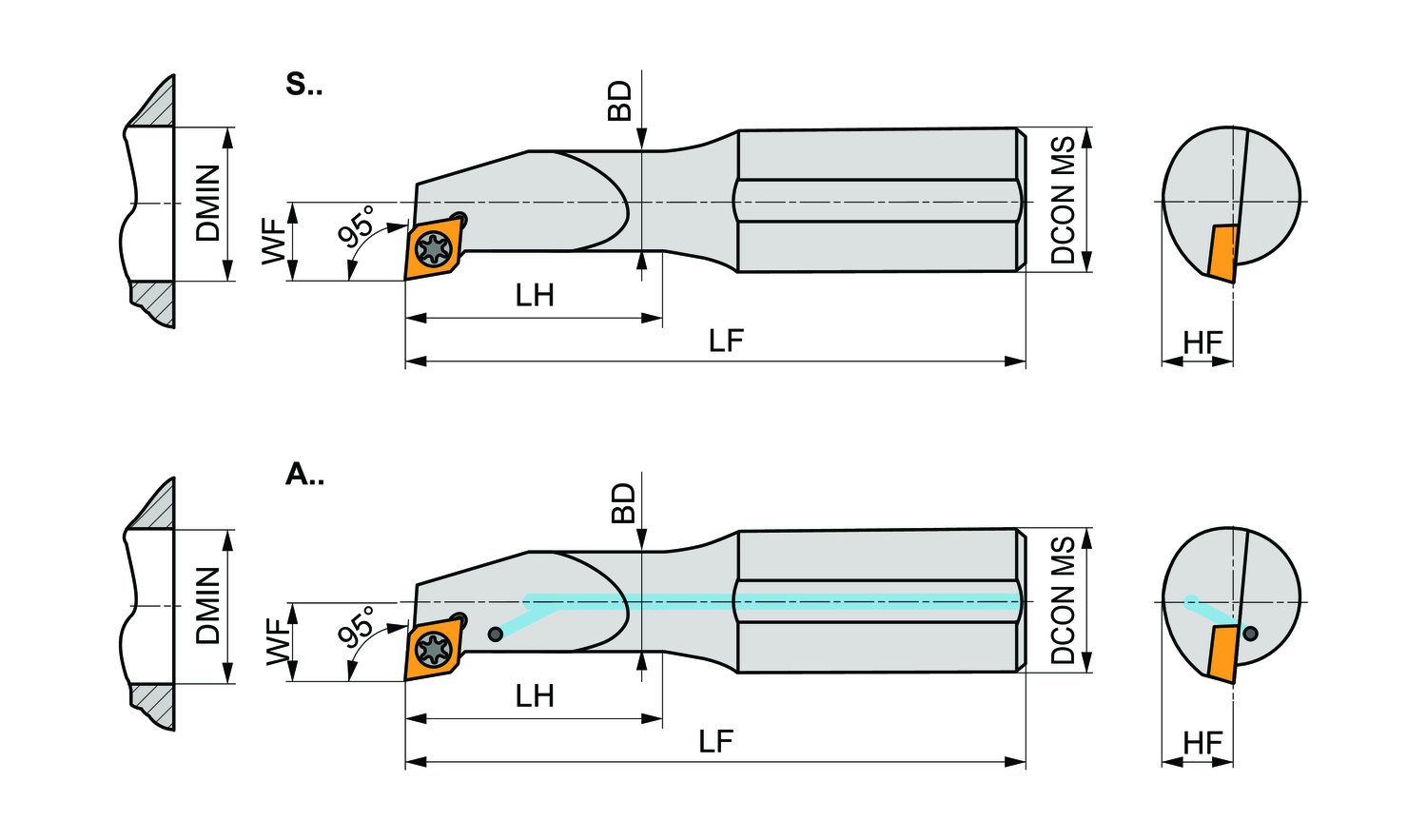

Body diameter - inch (BD)
0.315
Body diameter - millimeter (BD)
8
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.394
Connection diameter - millimeter (DCON MS)
10
Direction of tool
Right
Functional length - inch (LF)
4.331
Functional length - millimeter (LF)
110
Functional width - inch (WF)
0.236
Functional width - millimeter (WF)
6
Head length - inch (LH)
1.024
Head length - millimeter (LH)
26
Inclination angle (LAMS)
-5
Minimum bore diameter - inch (DMIN)
0.433
Minimum bore diameter - millimeter (DMIN)
11
Ortogonal rake angle (GAMO)
0
Screw clamp boring bar for holding a 75° rhombus positive insert with an inscribed circle diameter of 5.56mm, 2.38mm thick (ISO designation EP.. 0502.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 8mm diameter x 110mm long for taper boring and longitudinal boring with and without shoulder
