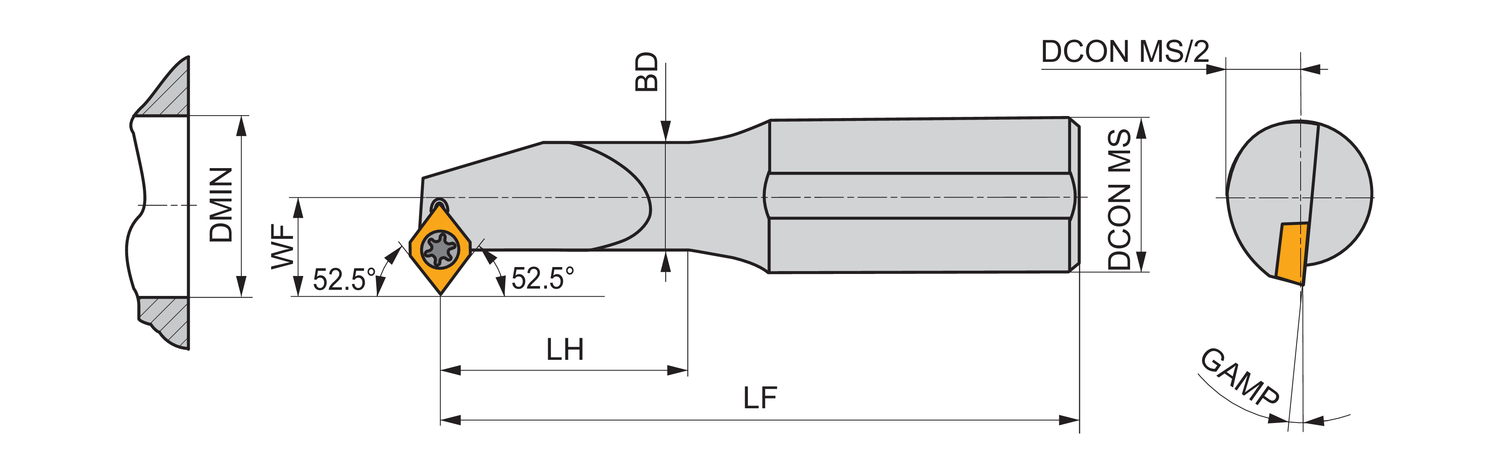

Pramet S0810J-SEXPL 05 boring bar — ISO S, left hand, screw clamping through hole, 0.315 in (8 mm) body diameter, 4.331 in (110 mm) functional length, 0.433 in (11 mm) minimum bore diameter. Article 6760771.

Axial rake angle (GAMP)

-5

Body diameter - inch (BD)

0.315

Body diameter - millimeter (BD)

8

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

0.394

Connection diameter - millimeter (DCON MS)

10

Direction of tool

Left

Functional length - inch (LF)

4.331

Functional length - millimeter (LF)

110

Functional width - inch (WF)

0.236

Functional width - millimeter (WF)

6

Head length - inch (LH)

1.024

Head length - millimeter (LH)

26

Minimum bore diameter - inch (DMIN)

0.433

Minimum bore diameter - millimeter (DMIN)

11
