Pramet S20S-SCKCL 09 boring bar — ISO S, left hand, 0.984 in minimum bore diameter, 9.843 in functional length, 0.787 in connection diameter. Screw clamping through hole for CC.. 09T3.. inserts. Article 6757017.
MODEL 6757017
$178.73 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable:No
#2386828
Brand
Harwal
Model
1.000 x 1.624 x .250BDLV
#2880929
Brand
Pyramex
Model
G9WMG
#6059598
Brand
Pramet
Model
6757295
#207911
Brand
Nachi Bearing
Model
6212C3
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Direction of tool
Left
Functional length - inch (LF)
9.843
Functional length - millimeter (LF)
250
Functional width - inch (WF)
0.512
Functional width - millimeter (WF)
13
Inclination angle (LAMS)
-5
Minimum bore diameter - inch (DMIN)
0.984
Minimum bore diameter - millimeter (DMIN)
25
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.728
Shank height - millimeter (H)
18.5
Shank width - inch (B)
0.728
Shank width - millimeter (B)
18.5

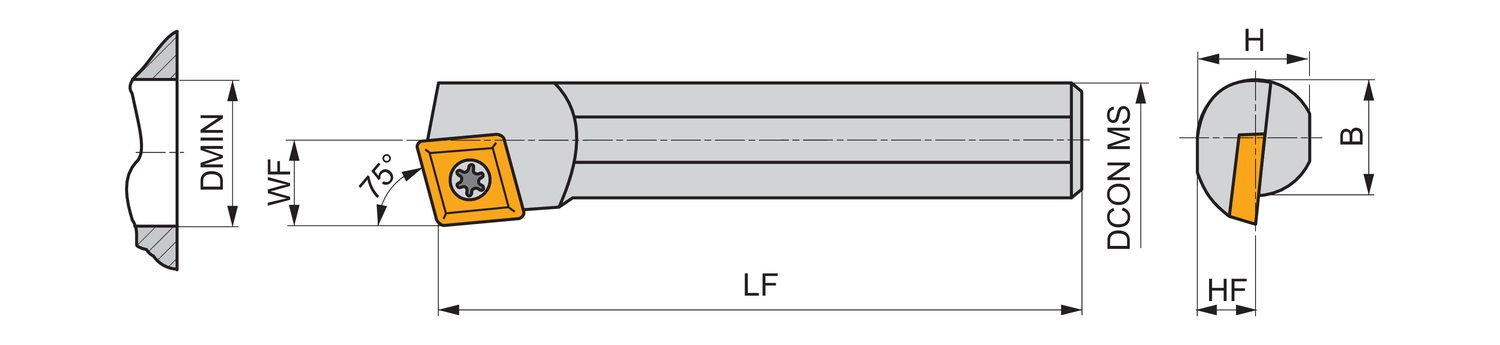

Screw clamp boring bar for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), left hand 75° end cutting with off-set shank, steel without coolant hole, 20mm diameter x 250mm long for taper boring and longitudinal boring without shoulder
