Pramet S20S-SDQCL 11 boring bar — ISO S, left hand, 0.787 in (20 mm) connection diameter, 9.843 in (250 mm) functional length, 0.984 in (25 mm) minimum bore diameter. Screw clamping through hole for DC.. 11T3.. inserts. Article 6756841.
MODEL 6756841
$178.73 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.787
Connection diameter - millimeter (DCON MS)
20
Direction of tool
Left
Functional length - inch (LF)
9.843
Functional length - millimeter (LF)
250
Functional width - inch (WF)
0.512
Functional width - millimeter (WF)
13
Inclination angle (LAMS)
-5
Minimum bore diameter - inch (DMIN)
0.984
Minimum bore diameter - millimeter (DMIN)
25
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.709
Shank height - millimeter (H)
18
Shank width - inch (B)
0.728
Shank width - millimeter (B)
18.5

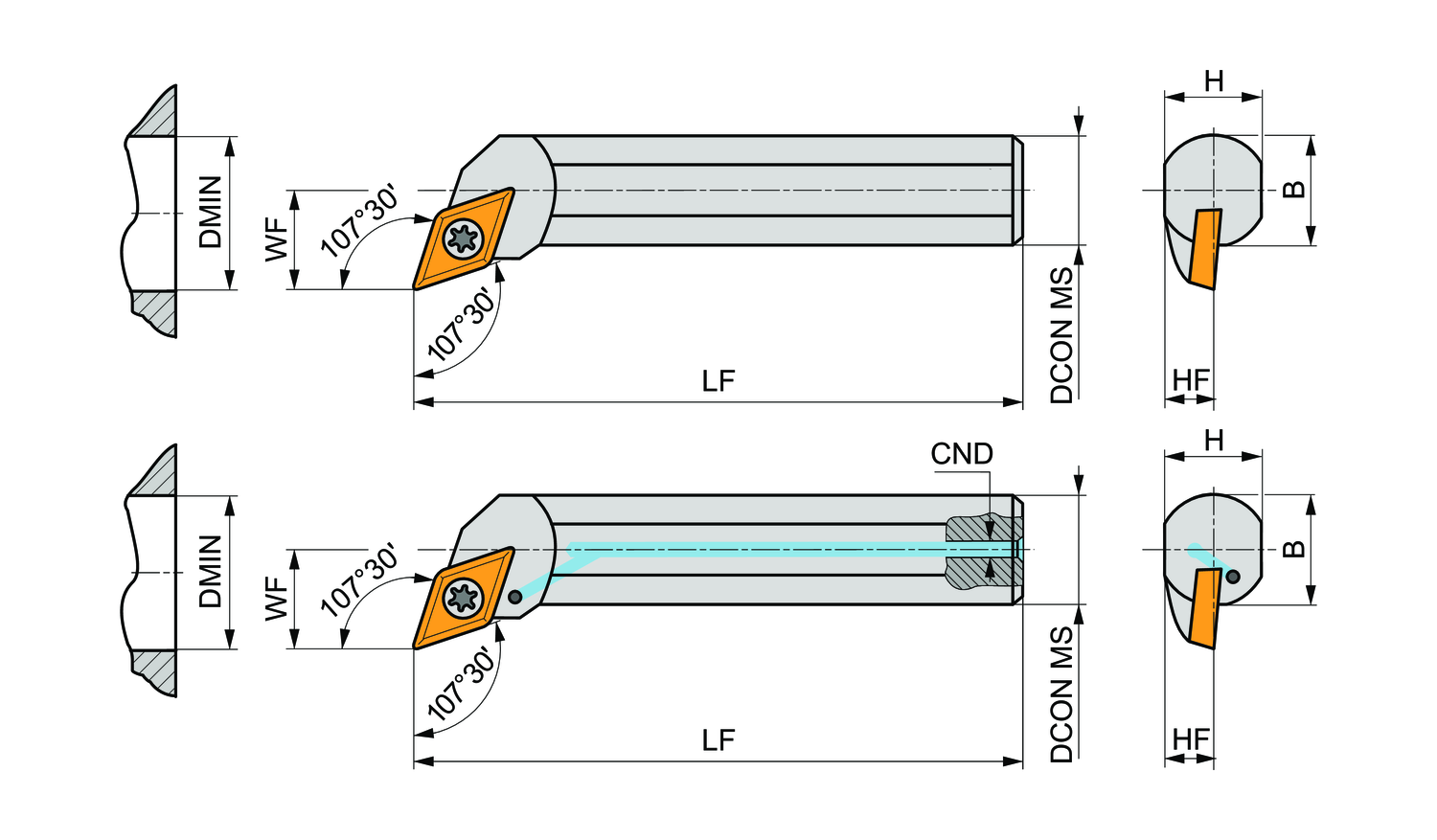

Screw clamp boring bar for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), left hand 107°30' end cutting with off-set shank, steel without coolant hole, 20mm diameter x 250mm long for taper boring and longitudinal boring with and without shoulder
