Image for Illustration purposes only. Actual product may vary
Pramet S25T-SWLCR 06 6756826 Boring Bar ISO S - Right Hand
MODEL 6756826
$187.20 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

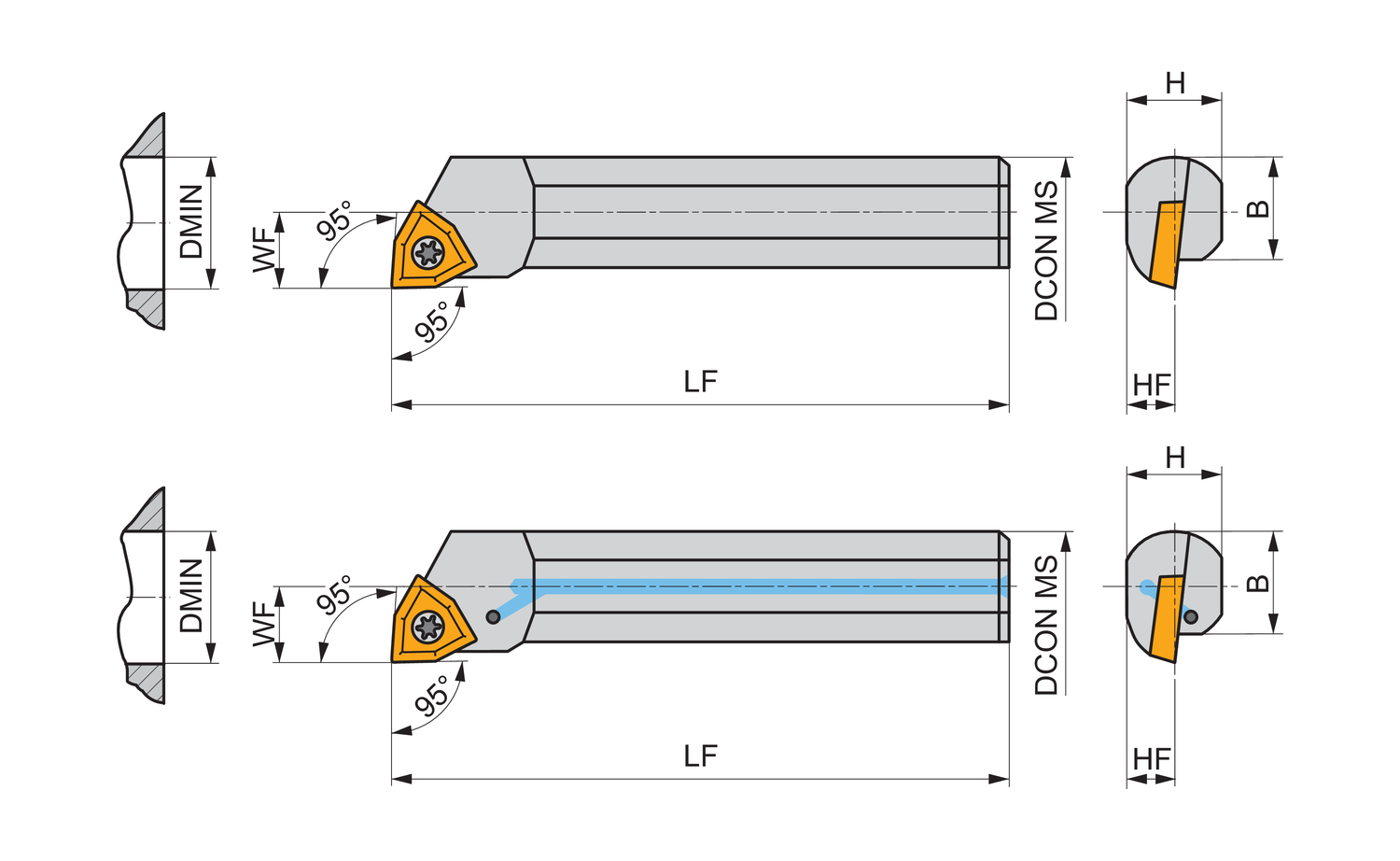

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
0.984
Connection diameter - millimeter (DCON MS)
25
Direction of tool
Right
Functional length - inch (LF)
11.811
Functional length - millimeter (LF)
300
Functional width - inch (WF)
0.669
Functional width - millimeter (WF)
17
Inclination angle (LAMS)
-7
Minimum bore diameter - inch (DMIN)
1.26
Minimum bore diameter - millimeter (DMIN)
32
Ortogonal rake angle (GAMO)
0
Shank height - inch (H)
0.906
Shank height - millimeter (H)
23
Shank width - inch (B)
0.906
Shank width - millimeter (B)
23
Screw clamp boring bar for holding a 80° trigon positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation WC.. 06T3.. ), right hand 95° side and end cutting with off-set shank, steel without coolant hole, 25mm diameter x 300mm long for taper boring and longitudinal boring with and without shoulder
