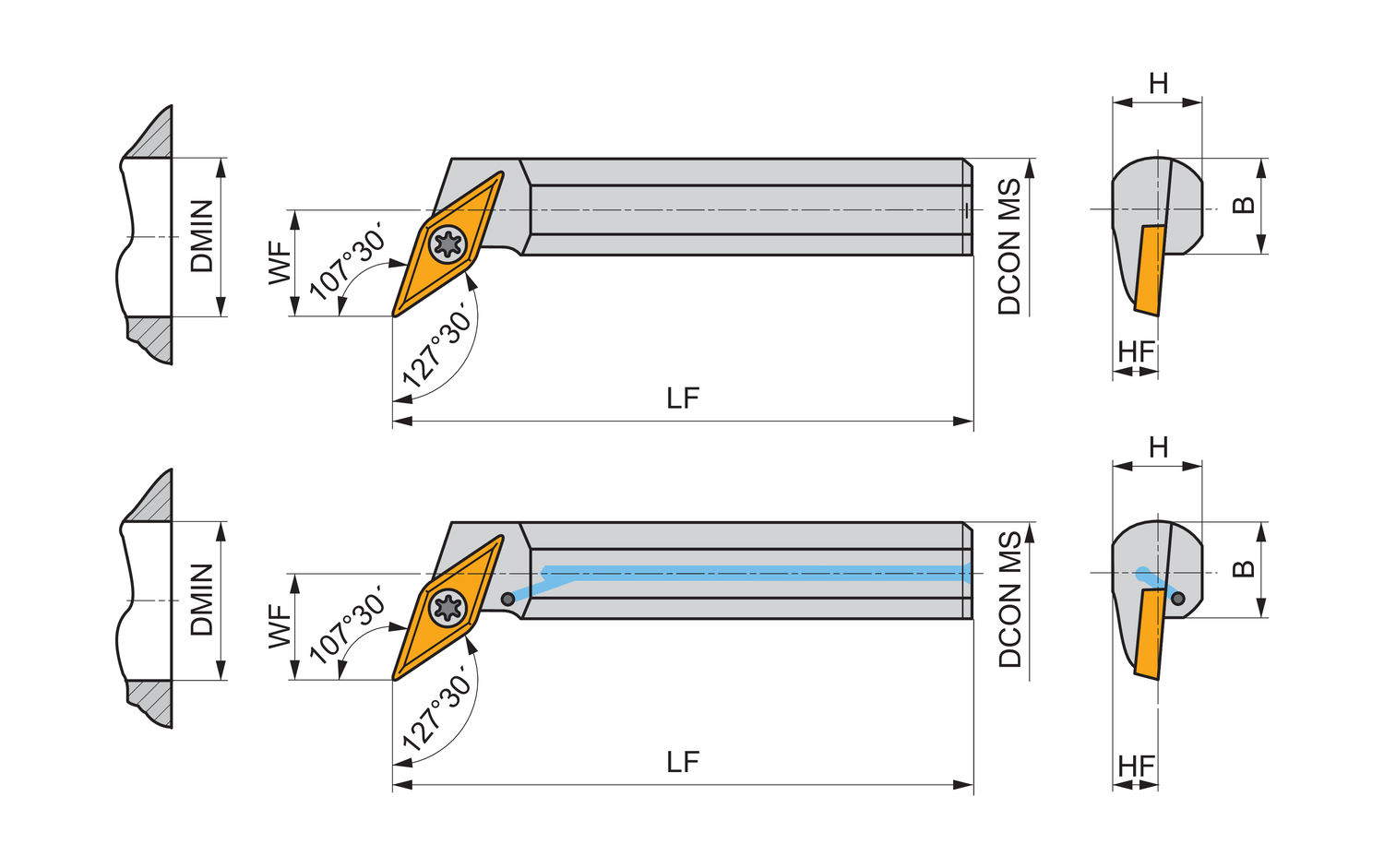

Pramet S40V-SVQCR 16-A boring bar — ISO S, right hand, screw clamping through hole, 1.575 in connection diameter, 15.748 in functional length, 1.969 in minimum bore diameter. Article 6756660.

Clamping Type Code (MTP)

Screw clamping through hole

Connection diameter - inch (DCON MS)

1.575

Connection diameter - millimeter (DCON MS)

40

Direction of tool

Right

Functional length - inch (LF)

15.748

Functional length - millimeter (LF)

400

Functional width - inch (WF)

1.063

Functional width - millimeter (WF)

27

Inclination angle (LAMS)

-5

Minimum bore diameter - inch (DMIN)

1.969

Minimum bore diameter - millimeter (DMIN)

50

Ortogonal rake angle (GAMO)

0

Shank height - inch (H)

1.496

Shank height - millimeter (H)

38

Shank width - inch (B)

1.496

Shank width - millimeter (B)

38
