Image for Illustration purposes only. Actual product may vary
Pramet C3-SCLCR-22040-09 7809827 Turning Toolholder Polygon Shank Coupling ISO S - External
MODEL 7809827
$262.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

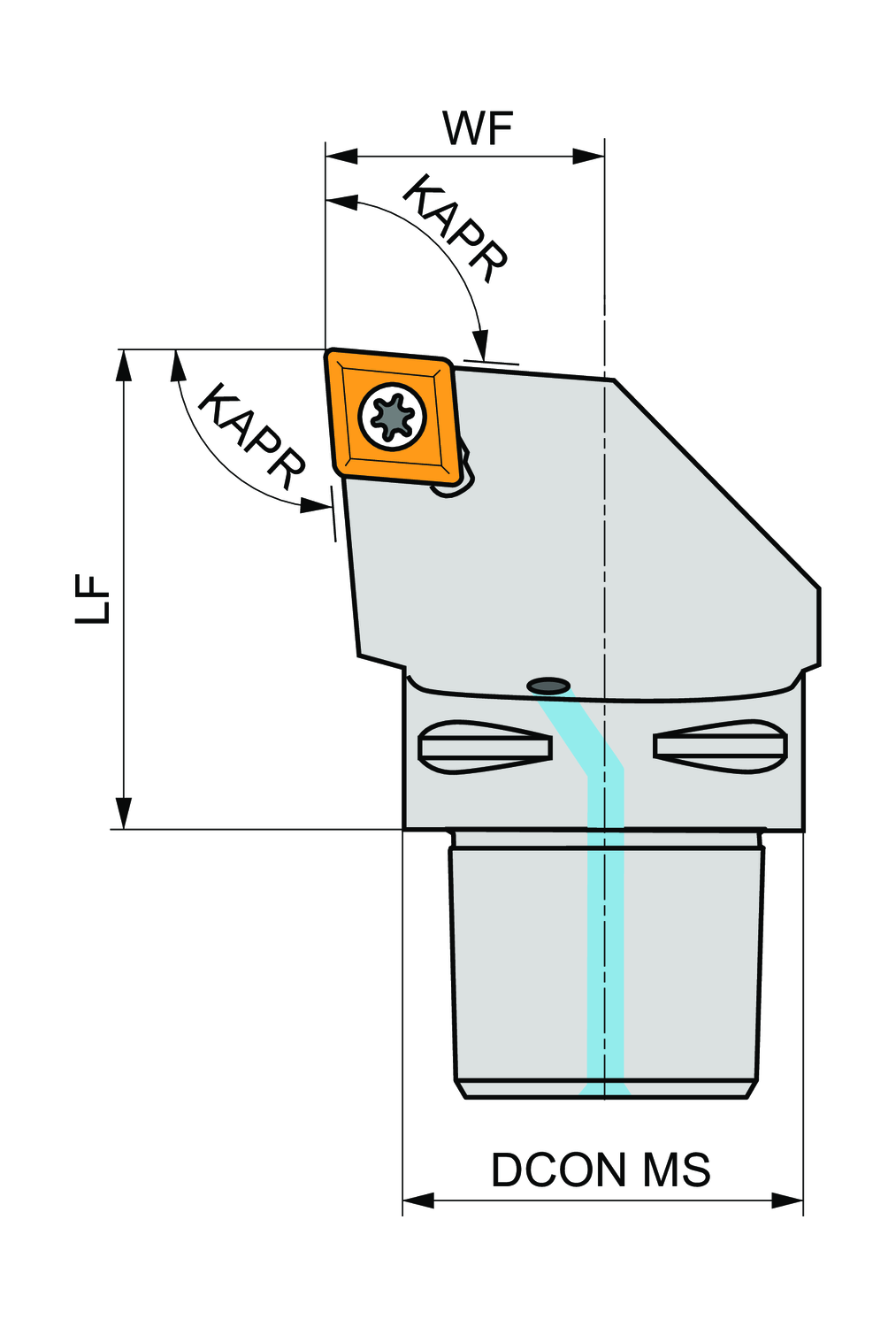

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.26
Connection diameter - millimeter (DCON MS)
32
Coolant supply property (CSP)
1
Direction of tool
Right
Functional length - inch (LF)
1.575
Functional length - millimeter (LF)
40
Functional width - inch (WF)
0.866
Functional width - millimeter (WF)
22
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
95
Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation CC.. 09T3.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C3, with 22mm funtional width and 40mm protruding length for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
