Image for Illustration purposes only. Actual product may vary
Pramet C4-DDJNL-27050-11 7809780 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809780
$262.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
System D

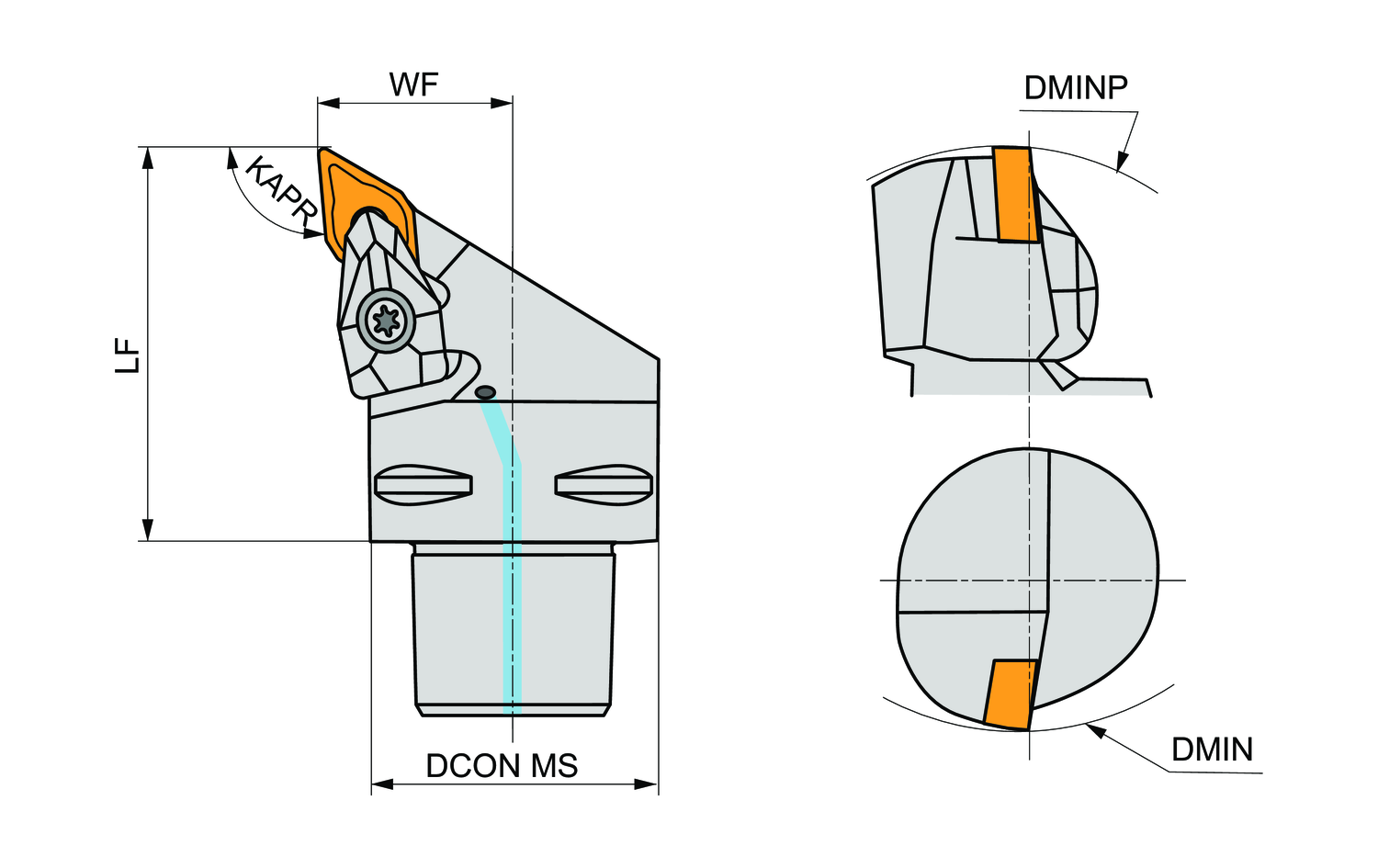

Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Inclination angle (LAMS)
-7
Minimum bore diameter - inch (DMIN)
2.362
Minimum bore diameter - millimeter (DMIN)
60
Minimum bore diameter Perpendicular - millimeter (DMINP)
140
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
93
Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation DN.. 1104.. ), left hand 93° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 50mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder
