Pramet C4-DSRNL-22050-12 7809795 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809795
$262.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

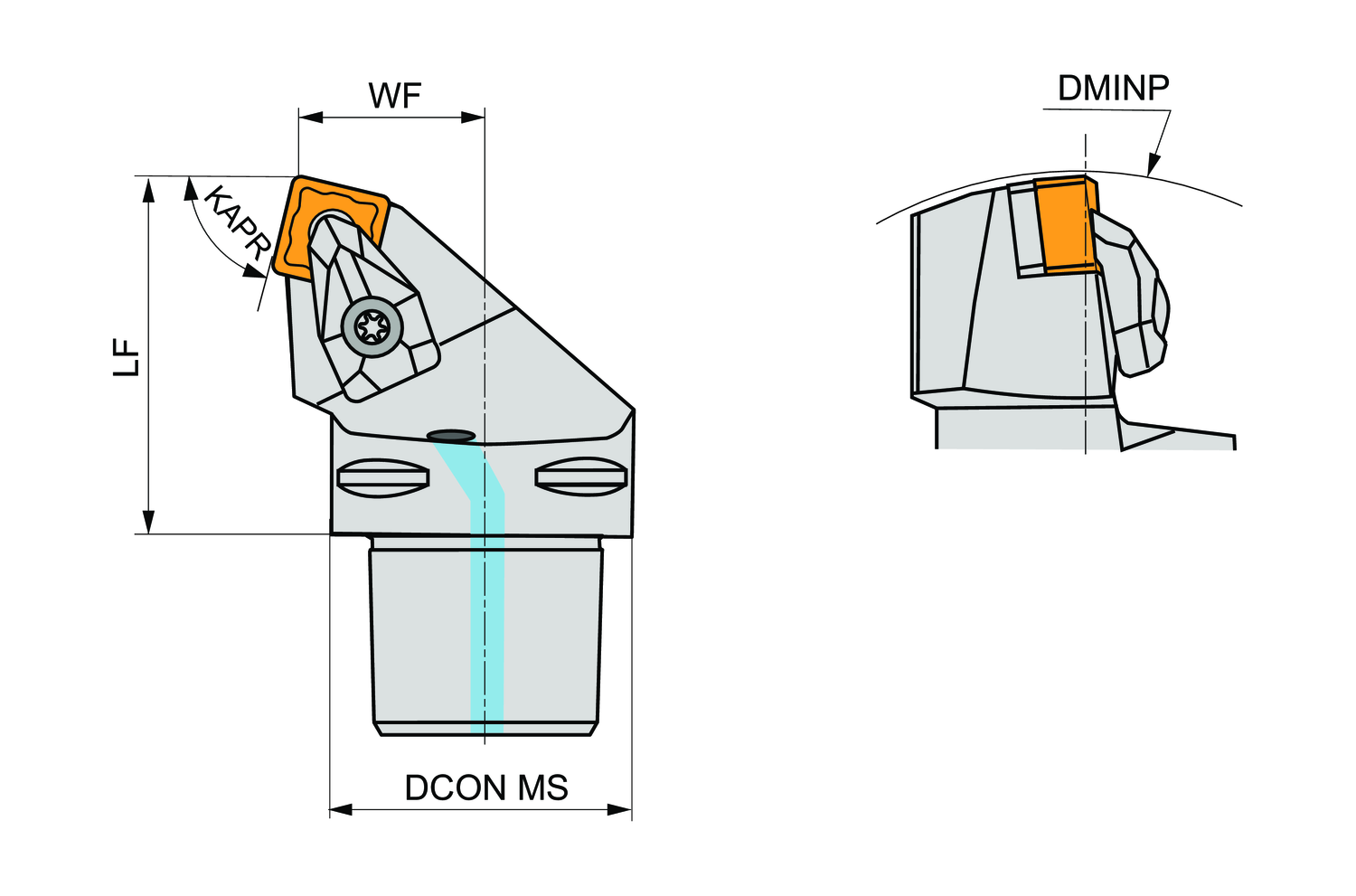

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
0.866
Functional width - millimeter (WF)
22
Inclination angle (LAMS)
-6
Minimum bore diameter Perpendicular - millimeter (DMINP)
140
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
75
Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), left hand 75° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 22mm funtional width and 50mm protruding length for taper turning and longitudinal turning without shoulder
