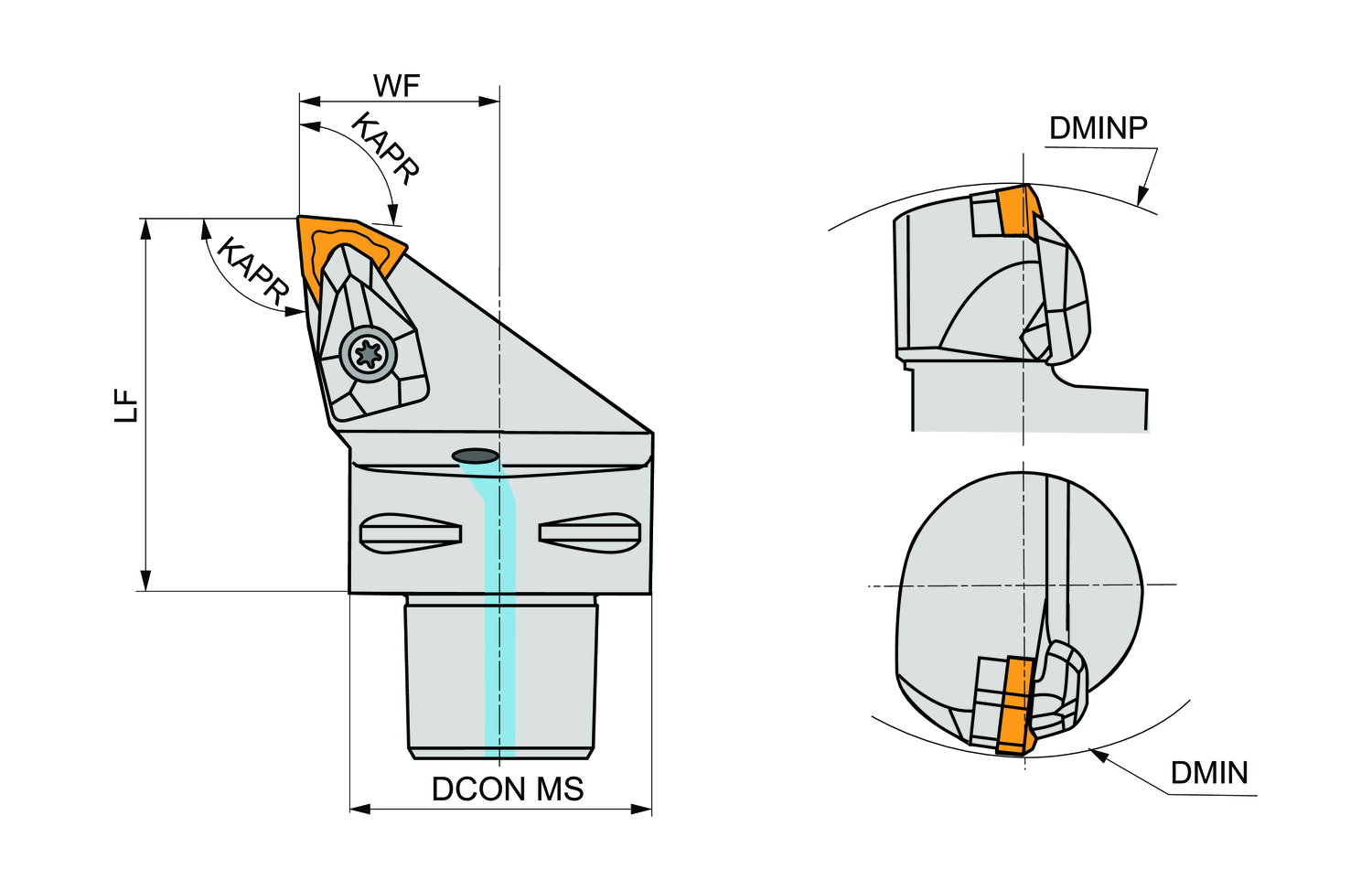

Image for Illustration purposes only. Actual product may vary
Pramet C4-DWLNL-27050-06 7809818 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809818
$262.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Left
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
1.063
Functional width - millimeter (WF)
27
Inclination angle (LAMS)
-6
Minimum bore diameter - inch (DMIN)
2.362
Minimum bore diameter - millimeter (DMIN)
60
Minimum bore diameter Perpendicular - millimeter (DMINP)
140
Ortogonal rake angle (GAMO)
-6
Tool cutting edge angle (KAPR)
95
Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation WN.. 0604.. ), left hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 27mm funtional width and 50mm protruding length for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder
