Pramet C4-SDNCN-00050-11 7809839 Turning Toolholder Polygon Shank Coupling ISO S - External
MODEL 7809839
$262.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

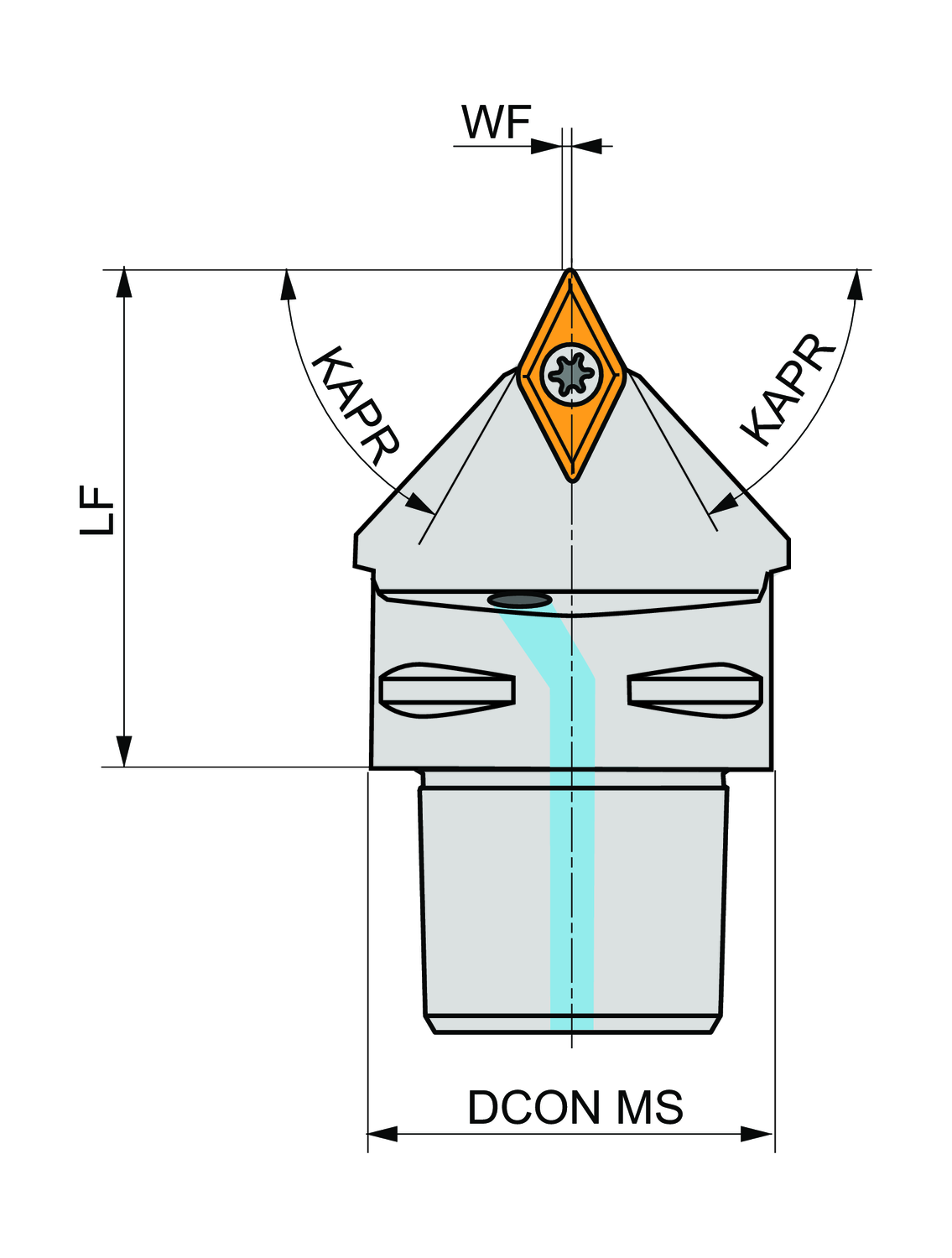

Clamping Type Code (MTP)
Screw clamping through hole
Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Neutral
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
0.02
Functional width - millimeter (WF)
0.5
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
62.5
Screw clamp turning tool for holding a 55° rhombus positive insert with an inscribed circle diameter of 9.525mm, 3.97mm thick (ISO designation DC.. 11T3.. ), neutral hand 62°30' side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 50mm protruding length for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
