Image for Illustration purposes only. Actual product may vary
Pramet C4-SRDCN-00050-12A 7809842 Turning Toolholder Polygon Shank Coupling ISO S - External
MODEL 7809842
$262.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Clamping Type Code (MTP)
Screw clamping through hole

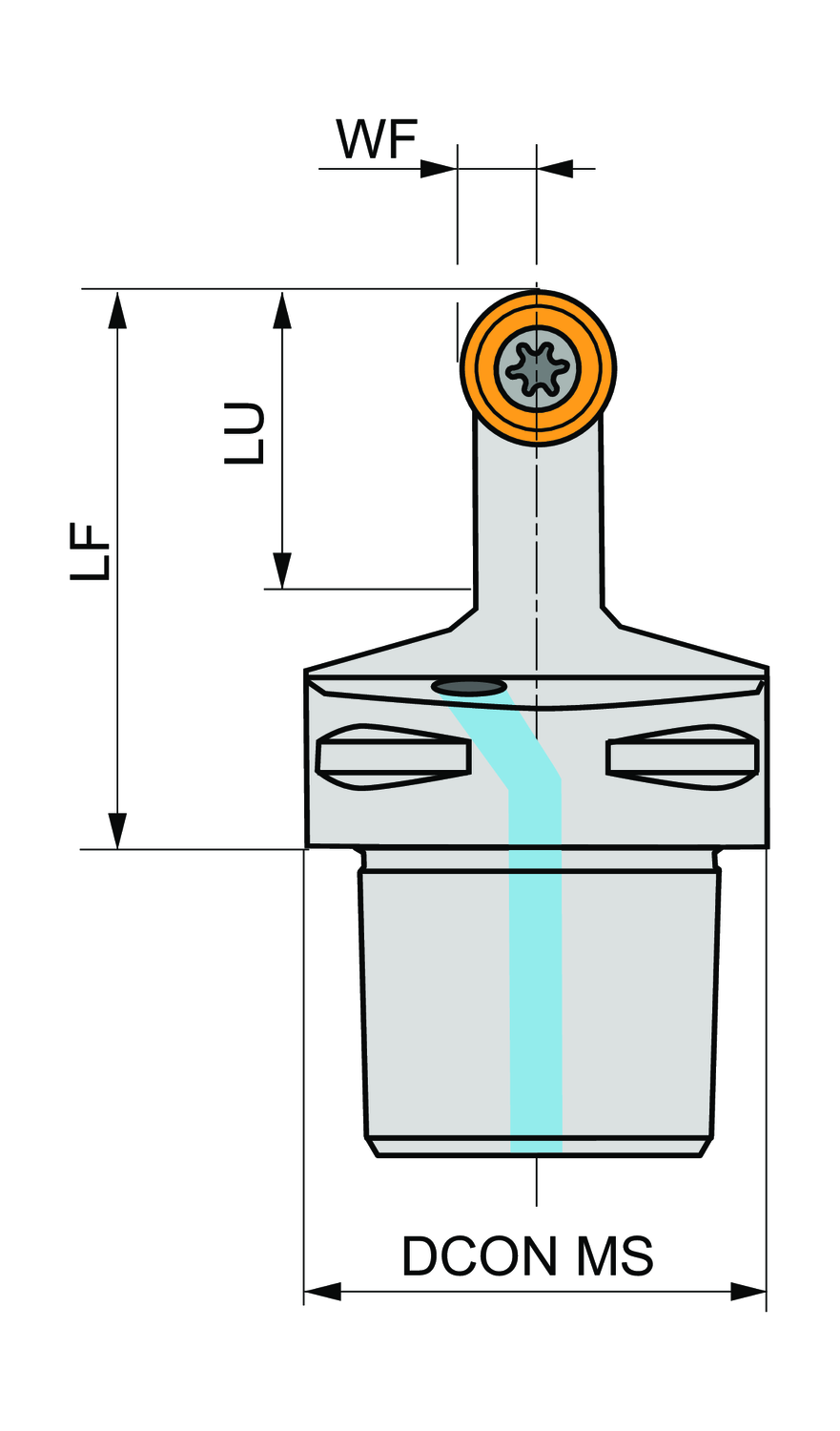

Connection diameter - inch (DCON MS)
1.575
Connection diameter - millimeter (DCON MS)
40
Coolant supply property (CSP)
1
Direction of tool
Neutral
Functional length - inch (LF)
1.969
Functional length - millimeter (LF)
50
Functional width - inch (WF)
0.236
Functional width - millimeter (WF)
6
Ortogonal rake angle (GAMO)
0
Tool cutting edge angle (KAPR)
28
Usable Length - inch (LU)
1.102
Usable Length - millimeter (LU)
28
Screw clamp turning tool for holding a round positive insert with a diameter of 12mm, 4.76mm thick (ISO designation RC.. 1204MO ), neutral hand side and end cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C4, with 50mm protruding length for taper turning, single and multi-directional copy turning and longitudinal turning without shoulder
