Pramet C6-DDNNN-00065-15 7809792 Turning Toolholder Polygon Shank Coupling ISO D - External
MODEL 7809792
$335.26 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes

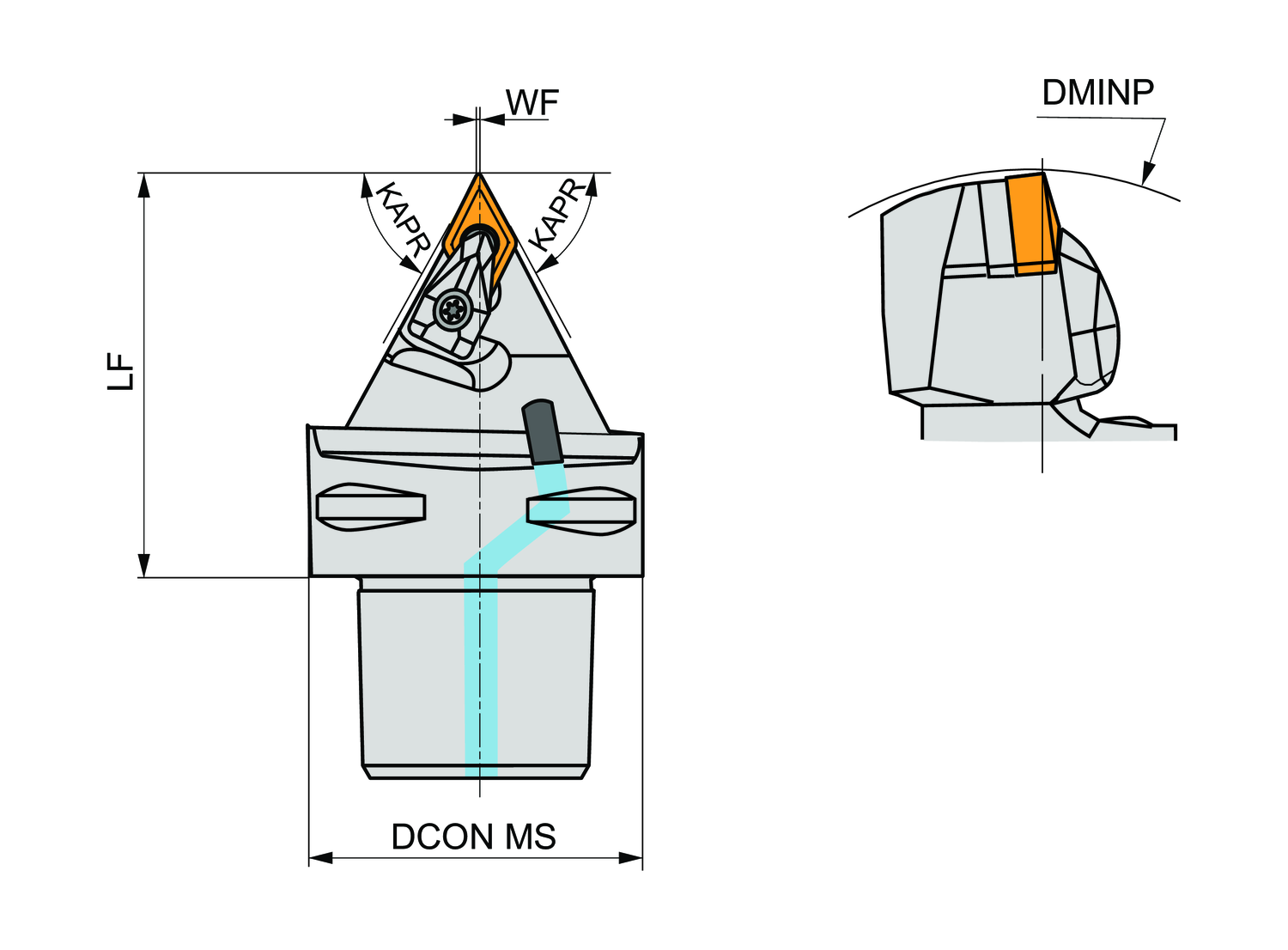

Clamping Type Code (MTP)
System D
Connection diameter - inch (DCON MS)
2.48
Connection diameter - millimeter (DCON MS)
63
Coolant supply property (CSP)
1
Direction of tool
Neutral
Functional length - inch (LF)
2.559
Functional length - millimeter (LF)
65
Functional width - inch (WF)
0.02
Functional width - millimeter (WF)
0.5
Inclination angle (LAMS)
-9
Minimum bore diameter Perpendicular - millimeter (DMINP)
190
Ortogonal rake angle (GAMO)
-5
Tool cutting edge angle (KAPR)
62.5
Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7mm, 6.35mm thick (ISO designation DN.. 1506.. ), neutral hand 62°30' side cutting with straight shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 65mm protruding length for single and multi-directional copy turning
